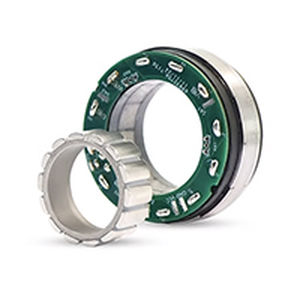

Three-phase motor FL-38-08

brushless48 Vcompact

The frameless motor FL-38-08 from A2V is ideal for direct integration into your embedded or robotic applications. High performance, compact design. - Nominal torque: 0.1 Nm - Nominal speed: 9000 rpm - Voltage: 48 V Motor Type | Input Voltage (V) | Nominal Speed (rpm) | Nominal Torque (Nm) | Nominal Power (W) | Nominal Current (A) | Peak Torque (Nm) | Peak Current (A) FL-38-08 | 48 | 9000 | 0.1 | 94 | 2.75 | 0.32 | 8.25 - No-load current (A): 0.28 - Efficiency (%): >80% - Back-EMF constant/effective value (V/Krpm): 2.54 - Torque constant (Nm/A): 0.04 - Resistance (ohms@20°C): 1.07 - Inductance (mH): 0.89 - Number of pole pairs: 7 - Three-phase connection: Y - Encoder: Absolute - Weight (kg): 0.05 - Insulation class: F - Brand Name: RMD - Series Name: FL - Stator Diameter: 38 mm - Rotor Height: 08 mm - Nominal Power: 100 W Technical Specifications: - Motor Type: FL-38-08 - Input Voltage: 48 V - Nominal Speed: 9000 rpm - Nominal Torque: 0.1 Nm - Nominal Power: 94 W - Nominal Current: 2.75 A - Peak Torque: 0.32 Nm - Peak Current: 8.25 A - No-load Current: 0.28 A - Efficiency: >80% - Back-EMF Constant: 2.54 V/Krpm - Torque Constant: 0.04 Nm/A - Resistance: 1.07 ohms@20°C - Inductance: 0.89 mH - Number of Pole Pairs: 7 - Three-phase Connection: Y - Encoder: Absolute - Weight: 0.05 kg - Insulation Class: F
