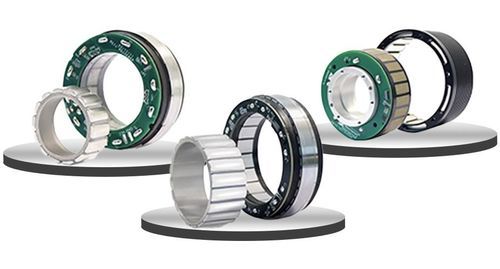

Brushless motor FL

24 V48 Vexternal rotor

Frameless motors from the FL and FLO series are designed to be directly integrated into the heart of your mechanical systems. Compact, high-performance, and quiet, they are suitable for projects requiring minimal space without compromising power. Why choose frameless motors? - Frameless structure for direct integration into mechanics - External rotor for high torque and low inertia - Optimized thermal dissipation - Compact and lightweight design - Large diameter hollow shaft on the FLO series The two available series: - FL: flat, lightweight, compact frameless motors – sizes from 40 to 110 mm - FLO: frameless motors with external rotor and large hollow diameter – sizes from 50 to 90 mm Typical application examples: - Humanoid robotics: smooth articulation of limbs - Exoskeletons: assisted motorization with low inertia - Professional drones: compact and responsive propulsion - Cameras and stabilizers: ultra-precise and silent movements - Embedded systems: small footprint, high reliability FL Series (Inner Rotor) - Frameless Motor - FL-38-08: Torque: 0.1 Nm, Speed: 9000 rpm, Voltage: 48 V - FL-50-08: Torque: 0.3 Nm, Speed: 5200 rpm, Voltage: 48 V - FL-50-15: Torque: 0.51 Nm, Speed: 3800 rpm, Voltage: 48 V - FL-70-10: Torque: 0.55 Nm, Speed: 3500 rpm, Voltage: 48 V - FL-70-16: Torque: 1.3 Nm, Speed: 3000 rpm, Voltage: 48 V - FL-85-13: Torque: 1.3 Nm, Speed: 2400 rpm, Voltage: 48 V - FL-85-23: Torque: 2 Nm, Speed: 3500 rpm, Voltage: 48 V FLO Series (Outer Rotor) - Frameless Motor - FLO-50-15: Torque: 0.35 Nm, Speed: 2500 rpm, Voltage: 24 V - FLO-70-15: Torque: 0.8 Nm, Speed: 2400 rpm, Voltage: 48 V - FLO-90-15: Torque: 1.5 Nm, Speed: 1600 rpm, Voltage: 48 V Technical Specifications / Features - Frameless structure for direct mechanical integration - Inner or outer rotor depending on the series - Optimized for compactness and high performance - Wide range of sizes and torque values - Voltage: 24 V or 48 V depending on the model - Encoder options: Absolute, Hall+Incremental
