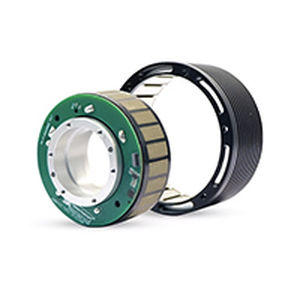

Three-phase motor FLO-90-15brushless48 Vcompact
Add to favorites
Compare this product
Characteristics
- Type
- three-phase, brushless
- Voltage
- 48 V
- Configuration
- compact, frameless
- Other characteristics
- custom, high-torque
- Power
252 W
(0.34 hp)- Intensity
6.6 A
- Torque
3.75 Nm
(2.765858 ft.lb)- Rotational speed
1,600 rpm
(10,053.0965 rad.min-1)- Diameter
90 mm
(3.54 in)
Description
Product Details
- Brushless frameless motor optimized for mechanical integration. Compact format, high torque, and custom performance for advanced systems.
- Nominal torque: 1.5 Nm
- Nominal speed: 1600 rpm
- Voltage: 48 V
Technical Specifications
- Type de moteur: FLO-90-15
- Tension d'entrée (V): 48
- Vitesse nominale (tr/min): 1600
- Couple nominal (Nm): 1.5
- Puissance nominale (W): 252
- Courant nominal (A): 6.6
- Couple crête (Nm): 3.75
- Courant crête (A): 19.8
- No-load current (A): 0.35
- Efficiency (%): >83%
- Back-EMF constant (V/Krpm): 21.1
- Torque constant (Nm/A): 0.23
- Resistance (ohms@20°C): 0.35
- Inductance (mH): 0.28
- Number of pole pairs: 17
- Cogging torque (Nm): 64
- Three-phase connection: Y
- Encoder: Absolute
- Weight (kg): 0.46
- Insulation class: F
Codification
- RMD: Brand name
- FLO: Series name
- 90: Stator diameter
- 15: Rotor height
- 400: Nominal power
