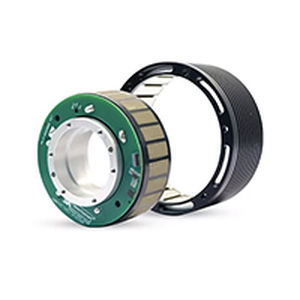

Three-phase motor FLO-50-15

24 Vcompactframeless

The frameless motor FLO-50-15 is optimized for direct integration into your demanding mechatronic applications. It stands out with its compact format, high torque, and customization options upon request. - Nominal Torque: 0.35 Nm - Nominal Speed: 2500 RPM - Voltage: 24 V Type of Motor: FLO-50-15 - Input Voltage (V): 24 - Nominal Speed (RPM): 2500 - Nominal Torque (Nm): 0.35 - Nominal Power (W): 91.6 - Nominal Current (A): 4.9 - Peak Torque (Nm): 0.87 - Peak Current (A): 14.7 Additional Features: - No-load Current: 0.32 A - Efficiency: >83% - Back-EMF Constant/Effective Value: 7.93 V/Krpm - Torque Constant: 0.07 Nm/A - Resistance (ohms@20°C): 0.4 - Inductance: 0.19 mH - Number of Pole Pairs: 13 - Cogging Torque: 12 Nm - Three-phase Connection: Y - Encoder: Absolute - Weight: 0.19 kg - Insulation Class: F Coding: - RMD: Brand Name - FLO: Series Name - 50: Stator Diameter - 15: Rotor Height - 100: Nominal Power
