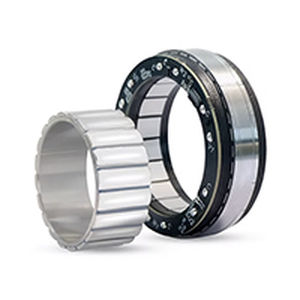

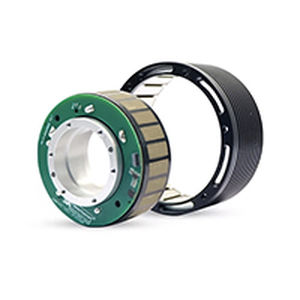

Three-phase motor FLO-70-15

48 Vcompact

Product Details The FLO-70-15 motor is the optimized integration version of the FL7015 motor: powerful, compact, and customizable for robotic, medical, or embedded systems. - Nominal Torque: 0.8 Nm - Nominal Speed: 2400 RPM - Voltage: 48 V Technical Characteristics: - No-load Current (A): 0.21 - Efficiency (%): >84% - Back-EMF Constant/Effective Value (V/Krpm): 17 - Torque Constant (Nm/A): 0.18 - Resistance (ohms@20°C): 0.5 - Inductance (mH): 0.55 - Number of Pole Pairs: 13 - Cogging Torque (Nm): 30.83 - Three-phase Connection: Y - Encoder: Absolute - Weight (kg): 0.33 - Insulation Class: F Coding: - RMD: Brand Name - FLO: Series Name - 70: Stator Diameter - 15: Rotor Height - 200: Nominal Power Technical Specifications: - Motor Type: FLO-70-15 - Input Voltage: 48 V - Nominal Speed: 2400 RPM - Nominal Torque: 0.8 Nm - Nominal Power: 200 W - Nominal Current: 4.4 A - Peak Torque: 2 Nm - Peak Current: 13.2 A - No-load Current: 0.21 A - Efficiency: >84% - Back-EMF Constant: 17 V/Krpm - Torque Constant: 0.18 Nm/A - Resistance: 0.5 ohms@20°C - Inductance: 0.55 mH - Number of Pole Pairs: 13 - Cogging Torque: 30.83 Nm - Three-phase Connection: Y - Encoder: Absolute - Weight: 0.33 kg - Insulation Class: F
