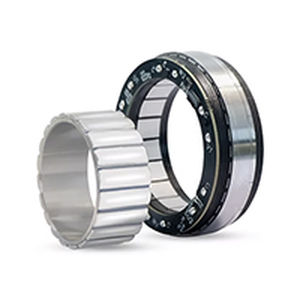

Three-phase motor FL-50-15brushless48 Vframeless
Add to favorites
Compare this product
Characteristics
- Type
- three-phase, brushless
- Voltage
- 48 V
- Configuration
- frameless
- Number of poles
- 10-pole
- Other characteristics
- high-performance
- Power
203 W
(0.28 hp)- Intensity
0.38 A, 4.3 A
- Torque
0.51 Nm
(0.376157 ft.lb)- Rotational speed
3,800 rpm
(23,876.1042 rad.min-1)- Diameter
50 mm
(1.97 in)
Description
Discover the FL-50-15 frameless motor: a brushless, frameless motor designed for applications requiring high performance and compactness.
- Nominal torque: 0.51 Nm
- Nominal speed: 3800 rpm
- Voltage: 48 V
Technical Specifications:
- No-load current (A): 0.38
- Efficiency (%): >81%
- Back-EMF constant / Effective value (V/Krpm): 8.12
- Torque constant (Nm/A): 0.12
- Resistance (ohms@20°C): 0.7
- Inductance (mH): 0.47
- Number of pole pairs: 10
- Three-phase connection: Y
- Encoder: Hall+INC
- Weight (kg): 0.16
- Insulation class: F
Series Coding:
- RMD: Brand name
- FL: Series name
- 50: Stator diameter
- 15: Rotor height
- 200: Nominal power
