Stone lifting clamp AL20AWJ

slabsheetnon-marking

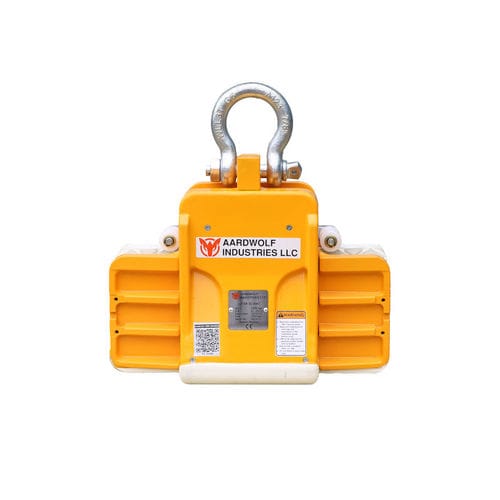

The Aardwolf AL20AWJ Automatic Slab Lifter is designed for lifting and handling thin stone slabs, engineered porcelain, ceramic panels, and other thin sheet materials. With a 0–20 mm grip range and 1,200 kg working load limit, this slab lifting clamp is suitable for stone fabrication facilities, warehouses, and professional material handling applications.

Designed with extra-wide jaws, the AL20AWJ provides a larger contact area with the slab to improve stability and balance during lifting. Rubber-coated clamping plates provide a secure grip while helping protect finished surfaces from scratches and damage. Integrated side rollers assist with accurate positioning and centering of the lifter on the slab.

The gravity-operated automatic locking mechanism allows the clamp to grip and release the load automatically during the lifting cycle, reducing the need for manual intervention. Its compact design makes it suitable for confined handling areas, while compatibility with cranes and suitable forklift lifting attachments provides flexibility for a range of stone and panel handling operations.The Aardwolf AL20AWJ Automatic Slab Lifter is designed for lifting and handling thin stone slabs, engineered porcelain, ceramic panels, and other thin sheet materials. With a 0–20 mm grip range and 1,200 kg working load limit, this slab lifting clamp is suitable for stone fabrication facilities, warehouses, and professional material handling applications.

Designed with extra-wide jaws, the AL20AWJ provides a larger contact area with the slab to improve stability and balance during lifting. Rubber-coated clamping plates provide a secure grip while helping protect finished surfaces from scratches and damage. Integrated side rollers assist with accurate positioning and centering of the lifter on the slab.

The gravity-operated automatic locking mechanism allows the clamp to grip and release the load automatically during the lifting cycle, reducing the need for manual intervention. Its compact design makes it suitable for confined handling areas, while compatibility with cranes and suitable forklift lifting attachments provides flexibility for a range of stone and panel handling operations.

Key Features of the AL20AWJ Slab Lifter

• Extra-wide jaws – Improved load stability for slabs of varying dimensions.
• Automatic locking mechanism – Gravity-controlled locking and release for hands-free operation.
• Surface protection – Rubber-coated clamp plates prevent scratches and damage.
• Precision side rollers – Facilitate accurate centring during lifting.
• Safety factor 3:1 – Designed to meet industrial safety requirements.

Specifications
Metric | Imperial
Grip range: 0 - 20 mm | 0 - 3/4"
Working load limit: 1200 kg | 2646 lbs
Net weight: 21 kg | 46.3 lbs
Packaging dimensions: L.440 mm × W.150 mm × H.360 mm | 17 3/8" × 5 7/8" × 14 1/8"

Why Choose the AL20AWJ Slab Lifter?
The AL20AWJ is designed for thin materials where surface protection and precise positioning are critical. Its automatic locking and precision rollers reduce handling time and labour, while the compact design suits confined workspaces without compromising safety.

Technical specifications / Caractéristiques

• Model: AL20AWJ
• Grip range: 0 - 20 mm (0 - 3/4")
• Working load limit (WLL): 1200 kg (2646 lbs)
• Net weight: 21 kg (46.3 lbs)
• Packaging dimensions: L.440 mm × W.150 mm × H.360 mm (17 3/8" × 5 7/8" × 14 1/8")
• Safety factor: 3:1
• Features: extra-wide jaws, automatic gravity-locking mechanism, rubber-coated clamp plates, precision side rollers
• Warranty: 2 years
