Automatic lifting clamp AL30A

stoneslabvertical

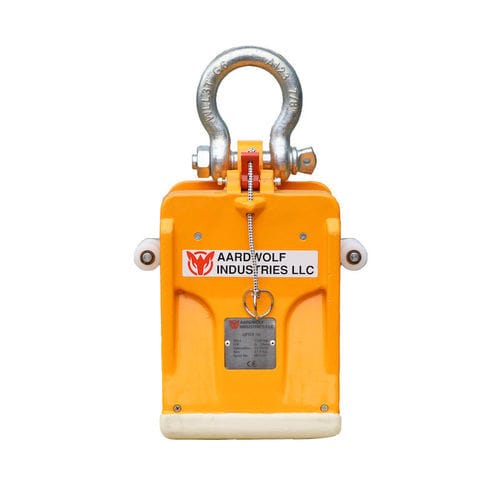

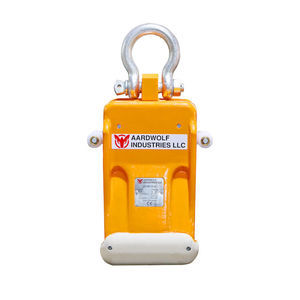

The Aardwolf Slab Lifter AL30A is a compact automatic vertical lifting clamp designed for safe and efficient handling of stone slabs from 0 to 30 mm thick. Suitable for granite, marble and other stone materials, the AL30A can be used with cranes and forklift booms for lifting, transporting and positioning slabs in fabrication workshops, warehouses and construction environments.

Its gravity-activated automatic locking mechanism securely grips the slab during pick-up and releases it after set-down, reducing manual handling and improving workflow efficiency. Integrated edge rollers allow smooth movement along the upper edge of the slab, making positioning easier while helping protect slab edges.

Rubber-coated clamp plates provide secure gripping contact while helping protect finished stone surfaces from scratches and damage. With a working load limit of 1,200 kg and a slim, compact profile, the AL30A is ideal for handling thinner stone slabs and working in confined storage areas.The Aardwolf Slab Lifter AL30A is a compact automatic vertical lifting clamp designed for safe and efficient handling of stone slabs from 0 to 30 mm thick. Suitable for granite, marble and other stone materials, the AL30A can be used with cranes and forklift booms for lifting, transporting and positioning slabs in fabrication workshops, warehouses and construction environments.

Its gravity-activated automatic locking mechanism securely grips the slab during pick-up and releases it after set-down, reducing manual handling and improving workflow efficiency. Integrated edge rollers allow smooth movement along the upper edge of the slab, making positioning easier while helping protect slab edges.

Rubber-coated clamp plates provide secure gripping contact while helping protect finished stone surfaces from scratches and damage. With a working load limit of 1,200 kg and a slim, compact profile, the AL30A is ideal for handling thinner stone slabs and working in confined storage areas.The Aardwolf Slab Lifter AL30A is a compact automatic vertical lifting clamp designed for safe and efficient handling of stone slabs from 0 to 30 mm thick. Suitable for granite, marble and other stone materials, the AL30A can be used with cranes and forklift booms for lifting, transporting and positioning slabs in fabrication workshops, warehouses and construction environments.

Its gravity-activated automatic locking mechanism securely grips the slab during pick-up and releases it after set-down, reducing manual handling and improving workflow efficiency. Integrated edge rollers allow smooth movement along the upper edge of the slab, making positioning easier while helping protect slab edges.

Rubber-coated clamp plates provide secure gripping contact while helping protect finished stone surfaces from scratches and damage. With a working load limit of 1,200 kg and a slim, compact profile, the AL30A is ideal for handling thinner stone slabs and working in confined storage areas.

Key features

• Automatic locking mechanism: gravity-activated locking pin for secure engagement during lift and automatic release on set-down.
• Edge rollers: protect slab edges and allow precise lateral adjustment.
• Surface protection: rubber-coated clamp plates to prevent scratches.
• Safety factor: designed with a 3:1 safety factor for industrial use.

Specifications
Grip range: 0 - 30 mm | Working Load Limit (WLL): 1200 kg | Net weight: 18.9 kg | Gross weight: 19.6 kg | Packaging dimension: L315 x W165 x H350 mm (12 3/8" x 6 1/2" x 13 3/4")

Why choose the Aardwolf AL30A

• Compact front-clamp profile for easier handling in confined spaces.
• Automatic lock reduces manual operations and speeds up handling cycles.
• Low-maintenance design with self-lubricating bearings to minimize downtime.
• 12-month warranty and quality-tested for reliable field performance.

Technical details

• Series: Auto Lock Series
• Model / Product code: AL30A
• Function: clamp, lift and transport stone slabs with crane or forklift
• Grip range: 0–30 mm (0–1 1/8")
• Working Load Limit: 1200 kg (2646 lb)
• Safety factor: 3:1
• Clamp plates: rubber-coated for surface protection
• Edge rollers: integrated for positioning and protection
• Maintenance: self-lubricating bearings, low-maintenance design
• Warranty: 12 months
