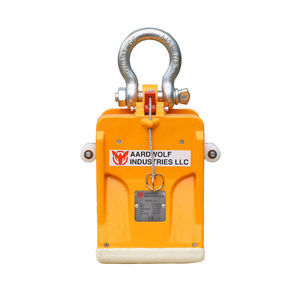

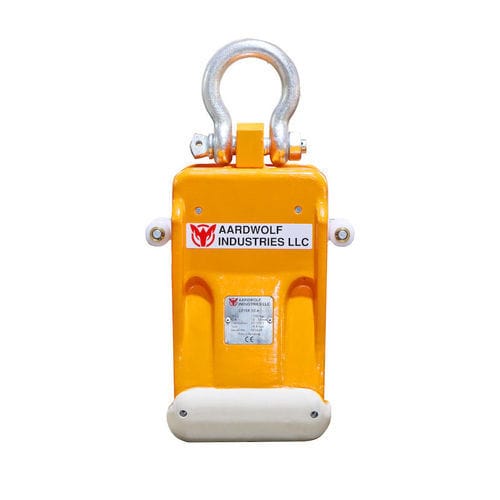

Slab lifting clamp AL50A

stoneverticalnon-marking

The Aardwolf Slab Lifter AL50A is an automatic vertical lifting clamp designed for safe and efficient handling of stone slabs from 10 to 50 mm thick. Ideal for granite, marble and other stone materials, the AL50A can be used with cranes and forklift booms for lifting, transporting and positioning slabs in workshops, warehouses and construction environments.

Its gravity-controlled automatic locking system securely grips the slab during lifting and releases it after set-down, helping reduce manual handling and improve productivity. Integrated edge rollers allow the lifter to move smoothly along the upper edge of the slab for easier positioning while helping protect slab edges.

Rubber-lined clamp plates provide secure gripping contact while helping prevent scratches and surface damage. With a slim profile and a working load limit of 1,200 kg, the AL50A is particularly suitable for professional stone handling operations where slabs are stored close together or working space is limited.

Key Features of the AL50A Slab Lifter

• Auto-locking system: Gravity-controlled locking pin for automatic engagement and release.
• Surface protection: Rubber-lined clamp plates minimize scratching and surface damage.
• Edge rollers: Provide controlled positioning and protect slab edges during handling.
• Safety compliance: Designed with a 3:1 safety factor; consult documentation for specific configurations.

Specifications of the AL50A Slab Lifter

• Model: AL50A
• Brand: Aardwolf
• Grip range: 10 – 50 mm (3/8" – 2")
• Working load limit (WLL): 1200 kg (2646 lbs)
• Net weight: 20.4 kg (44.97 lbs)
• Gross weight: 21.2 kg (46.74 lbs)
• Packaging dimension: L.310 × W.210 × H.410 mm (12 1/4" × 8 1/4" × 16 1/8")
• Compatibility: Suitable for use with cranes and forklifts

Advantages of the Aardwolf Slab Lifter

• Improved productivity: Automatic locking and edge rollers simplify handling and reduce cycle time.
• Enhanced safety: Secure locking mechanism and engineered safety margins reduce lift-related risk.
• Compact design: Slim construction enables operation in confined environments.
• Durability and support: Manufactured by Aardwolf and backed by a 2-year warranty.

Technical specifications

• Features: Gravity-controlled auto-locking pin, rubber-lined clamp plates, edge rollers
• Applications: Handling marble, granite and other stone slabs
• Use: Compatible with cranes and forklifts; ensure proper rigging and certified lifting equipment
• Warranty: 2-year manufacturer warranty
