Stone lifting clamp AL40AWJ

slabverticalnon-marking

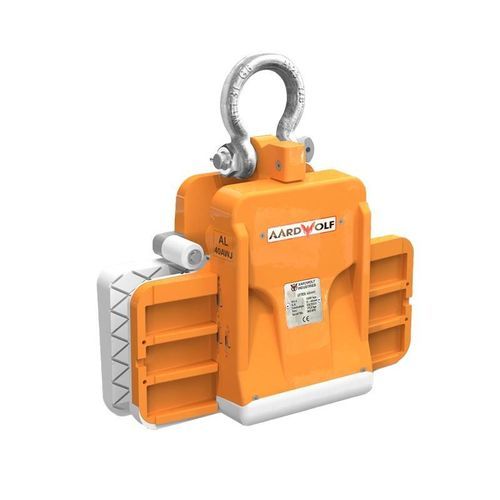

The Aardwolf AL40AWJ Wide Jaw Slab Lifter is a compact vertical lifting clamp designed for safe handling of thin stone slabs, engineered porcelain, ceramic panels and similar sheet materials. Its extra-wide jaws improve load stability, while the gravity-controlled automatic locking mechanism grips the slab during lifting and releases it when the load is set down. Rubber-coated clamp plates help protect finished surfaces from scratches and marking. Precision side rollers assist with accurate load centering. Suitable for use with cranes, hoists and appropriate forklift lifting attachments.

Features
Extra-wide jaws for stable handling of thin slabs and panels
Gravity-controlled automatic locking and release mechanism
Rubber-coated clamp plates for non-marking surface protection
Precision side rollers for accurate load centering
Compact design for handling slabs in restricted work areas
3:1 safety factor for dependable lifting operations
Suitable for stone, engineered porcelain, ceramic and similar rigid panels
Specifications
Product code: AL40AWJ
Grip range: 3–40 mm (1/8–1 5/8 in)
Working load limit: 1,200 kg (2,646 lb)
Net weight: 24.5 kg (54 lb)
Gross weight: 25.5 kg (56.2 lb)
Dimensions: 410 × 200 × 410 mm (16 1/8 × 7 7/8 × 16 1/8 in)
Safety factor: 3:1
Applications

Designed for vertical lifting, handling and positioning of thin stone slabs, engineered porcelain, ceramic panels and similar rigid sheet materials in stone fabrication workshops, warehouses and installation environments.The Aardwolf AL40AWJ Wide Jaw Slab Lifter is a compact vertical lifting clamp designed for safe handling of thin stone slabs, engineered porcelain, ceramic panels and similar sheet materials. Its extra-wide jaws improve load stability, while the gravity-controlled automatic locking mechanism grips the slab during lifting and releases it when the load is set down. Rubber-coated clamp plates help protect finished surfaces from scratches and marking. Precision side rollers assist with accurate load centering. Suitable for use with cranes, hoists and appropriate forklift lifting attachments.

Features
Extra-wide jaws for stable handling of thin slabs and panels
Gravity-controlled automatic locking and release mechanism
Rubber-coated clamp plates for non-marking surface protection
Precision side rollers for accurate load centering
Compact design for handling slabs in restricted work areas
3:1 safety factor for dependable lifting operations
Suitable for stone, engineered porcelain, ceramic and similar rigid panels
Specifications
Product code: AL40AWJ
Grip range: 3–40 mm (1/8–1 5/8 in)
Working load limit: 1,200 kg (2,646 lb)
Net weight: 24.5 kg (54 lb)
Gross weight: 25.5 kg (56.2 lb)
Dimensions: 410 × 200 × 410 mm (16 1/8 × 7 7/8 × 16 1/8 in)
Safety factor: 3:1
Applications

Designed for vertical lifting, handling and positioning of thin stone slabs, engineered porcelain, ceramic panels and similar rigid sheet materials in stone fabrication workshops, warehouses and installation environments.
