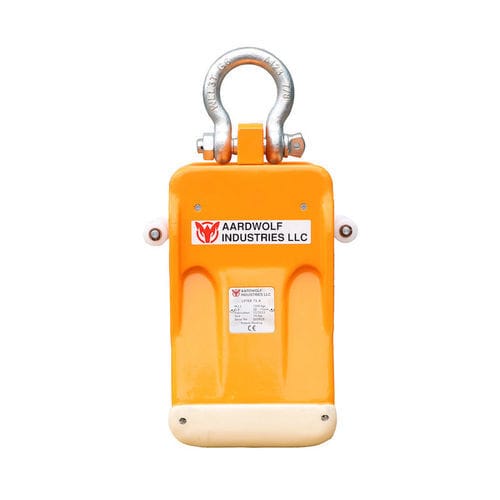

Slab lifting clamp AL75A

stoneslabvertical

Overview
The Aardwolf AL75A Slab Lifter is engineered for safe, efficient, and effortless stone slab handling. Featuring an auto-lock mechanism, this granite lifting clamp automatically grips slabs during pick-up and releases them upon set-down, minimizing manual effort and enhancing workflow. Its roller design allows precise positioning along the slab's upper edge, reducing setup time and increasing efficiency. Suitable for use with a crane or forklift for vertical clamp lifting of granite, marble and stone slabs.

Key Features

• Automatic Locking System – Gravity-based locking pin enables smooth, hands-free operation to improve efficiency.
• Edge Rollers – Integrated side rollers ensure accurate centering and precise positioning along the slab edge.
• Non-Marking Clamp Plates – Rubber-coated gripping plates prevent surface damage and preserve slab finish.
• Reliable Safety Ratio – Designed with a 3:1 safety factor to ensure dependable performance within rated capacity.

Specifications (table)
Item | Metric | Imperial
Grip range | 30 – 75 mm | 1 1/4" – 3"
Working load limit | 1200 kg | 2646 lb
Net weight | 27.2 kg | 59.97 lbs
Gross weight | 28.2 kg | 62.17 lbs
Packaging dimensions | 330 × 230 × 450 mm | 13" × 9" × 17 3/4"

Why Choose the Aardwolf Slab Lifter?

• Compact Design for Tight Spaces – Slim profile allows access to closely packed slabs for warehouse and confined areas.
• Versatile Applications – Front-clamping mechanism enables precise positioning, even near walls.
• Time & Cost Efficiency – Automatic locking reduces manual labour, increasing productivity and lowering operational costs.
• Secure & Strong Grip – Designed with a 2.5:1 force-multiplication ratio for firm, slip-resistant handling.
• Low Maintenance & Durable – Self-lubricating bearings and sturdy construction minimize downtime and service costs.
• Reliable Warranty – Supplied with Aardwolf’s 2-year warranty.

Avoid Counterfeit Lifting Clamps
Important notice: Unsafe imitations using movable jaws with side hinges can create uneven pressure causing slabs to slip, break or fall. Ensure the vertical lifting clamp is an authentic Aardwolf product to maintain safety and quality.

Technical specifications

• Model: AL75A
• Product family: Auto Lock Series
• Grip range: 30 – 75 mm (1 1/4" – 3")
• Working load limit (WLL): 1200 kg (2646 lb)
• Net weight: 27.2 kg (59.97 lbs)
• Gross weight: 28.2 kg (62.17 lbs)
• Packaging dimensions: 330 × 230 × 450 mm (13" × 9" × 17 3/4")
• Features: gravity-based auto-locking pin, edge rollers, rubber-coated non-marking clamp plates, self-lubricating bearings
• Compatibility: crane and forklift vertical lifting
