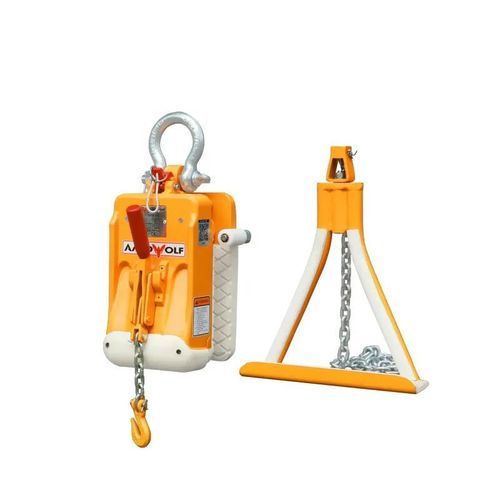

Slab lifting clamp AL50B

stoneslabvertical

General
The Aardwolf Slab Lifter AL50B is a manually operated clamp designed for safe handling and vertical lifting of stone panels such as granite, marble and engineered stone in workshops, warehouses and construction sites. The unit uses a hand-operated locking mechanism and requires no electrical power or compressed air, enabling clamping and release on-site without utilities.

Features

• Manual locking mechanism: Hand-operated lever for secure clamping and simple release of slabs.
• Surface protection: Rubber-lined clamp plates to minimise scratching and contact damage to slab faces.
• Grip range: 10–50 mm suitable for common slab thicknesses.
• Load capacity: Working load limit (WLL) 1200 kg.
• Safety system: Over-center lever and support bracket reduce the risk of slippage when the load encounters obstacles.
• Alignment rollers: Integrated rollers in the clamp head to assist precise positioning of slab edges.
• Front-edge clamping: Allows placement of slabs close to walls or vertical surfaces.
• Construction: Steel frame and components sized for regular on-site handling operations.
• Safety factor: Approx. 2.5:1.

Specifications
Metric | Imperial
Grip range: 10 - 50 mm | 0.4" - 2"
Working load limit: 1200 kg | 2646 lb
Net weight: 24 kg | 53 lb
Gross weight: 25 kg | 55 lb
Packaging dimensions: L580 x W185 x H310 mm | 22.8" x 7.3" x 12.2"

Technical specifications

• Grip range: 10 - 50 mm
• Working load limit (WLL): 1200 kg
• Net weight: 24 kg
• Gross weight: 25 kg
• Packaging dimensions: L580 x W185 x H310 mm
• Safety factor: approx. 2.5:1
• Manual locking mechanism (hand-operated)
• Rubber-lined clamp plates for surface protection
• Integrated rollers for accurate alignment
• Front-edge clamping for placement close to walls
