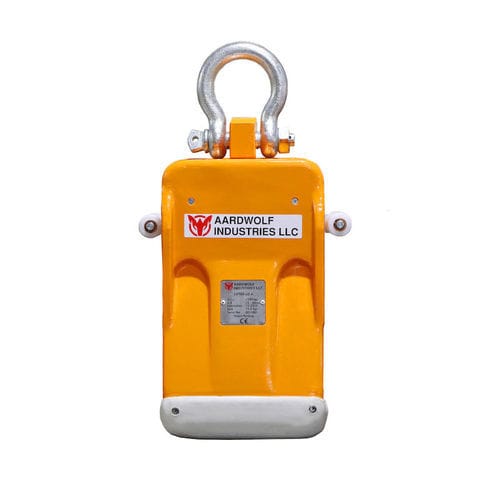

Slab lifting clamp AL60A

stoneverticalnon-marking

The Aardwolf Slab Lifter AL60A is an automatic vertical lifting clamp designed for safe and efficient handling of stone slabs from 15 to 60 mm thick. Suitable for granite, marble and other stone materials, the AL60A can be used with cranes and forklift booms for lifting, transporting and positioning slabs in fabrication workshops, warehouses and construction environments.

Its gravity-controlled automatic locking mechanism securely grips the slab during lifting and releases it after placement, helping reduce manual handling and improve workflow efficiency. Integrated edge rollers allow smooth movement along the upper edge of the slab for easier positioning and accurate centering.

Rubber-lined clamp plates provide secure contact while helping protect finished stone surfaces from scratches and damage. With a working load limit of 1,200 kg and a slim, compact design, the AL60A is particularly suitable for handling closely stored slabs in racks and containers.

Key Features

• Automatic locking mechanism
• Gravity-operated locking pin for reliable grip during lift and automatic release on set-down.
• Surface protection
• Rubber-lined clamp plates reduce risk of scratches or surface damage.
• Edge rollers
• Assist accurate positioning and protect slab edges during handling.
• Compact design
• Slim profile suitable for extracting tightly packed slabs from racks and placing panels close to walls.
• Compatibility
• Designed for use with cranes and forklifts.
• Safety factor
• Documentation references safety factors of 3:1 and also 2.5:1 in some sections; follow local regulations and inspection procedures.
• Warranty
• Manufacturer 2-year warranty.

Technical Specifications

• Model: Aardwolf Lifter Auto Unlock (AL60A)
• Grip range: 15 - 60 mm (5/8" - 2 3/8")
• Working Load Limit (WLL): 1200 kg (2646 lbs)
• Net weight: 27 kg (59.5 lbs)
• Gross weight: 28 kg (61.7 lbs)
• Packaging dimensions: L330 x W230 x H450 mm (13" x 9" x 17 3/4")
• Locking: gravity-controlled automatic locking pin
• Surface protection: rubber-lined clamp plates
• Edge protection: edge rollers for positioning and edge safety

Why Choose the Aardwolf AL60A?

• Improved efficiency
• Automatic lock and edge rollers reduce handling time and labour.
• Operational safety
• Robust mechanical design with documented safety factors; use per local lifting standards.
• Versatility
• Compact clamp allows work in confined spaces and handling of tightly packed slabs.
