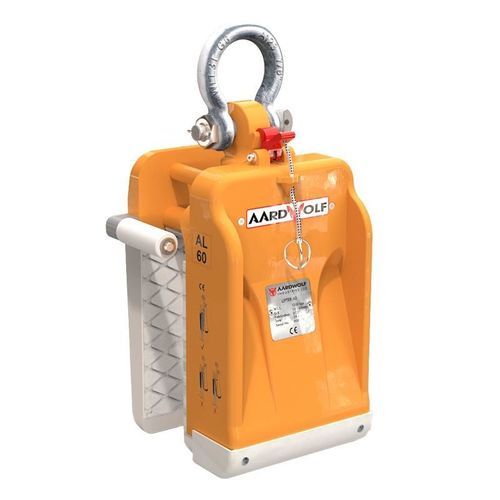

Slab lifting clamp AL60

stoneslabvertical

The Aardwolf Slab Lifter AL60R is a heavy-duty vertical lifting clamp designed for the safe handling, lifting and positioning of stone slabs, including granite and marble. With a 1,200 kg working load limit and a 15–60 mm grip range, it is suitable for stone fabrication workshops, warehouses and construction applications.

The lifter features a reliable locking latch mechanism for quick and secure jaw operation. Integrated side rollers allow the clamp to move smoothly along the upper edge of the slab, making positioning and centering easier before lifting while helping protect slab edges from damage.

The clamping plates feature a rubber-coated contact surface, providing high friction for a secure grip while helping prevent scratches and marks on finished stone surfaces.

Manufactured from strong cast aluminum, the AL60R combines high lifting capacity with a compact and relatively lightweight design. It is suitable for integration with cranes and forklift lifting systems, including slab-handling operations in confined working areas.

Key features of the AL60 slab lifter

• Locking latch mechanism – Quick positive lock and manual release for controlled operations.
• Side rollers – Reduce edge stress and enable accurate centering for balanced lifts.
• Scratch protection – Rubber-coated clamp plates prevent marks on finished surfaces.
• Safety factor 2.5:1 – Engineered to meet safety requirements within the rated working load limit.
• Cast aluminum construction – Durable yet lightweight for easier handling on site.

Specifications
Grip range — 15 – 60 mm — 5/8" – 2 3/8"
Working load limit — 1200 kg — 2646 lb
Net weight — 26.8 kg — 59.08 lbs
Gross weight — 27.8 kg — 61.29 lbs
Packaging dimensions — 330 × 230 × 450 mm — 13" × 9" × 17 3/4"

Warning: Beware of counterfeit slab lifters
Counterfeit clamps that mimic Aardwolf design may use movable jaws on two elongated side hinges, causing uneven pressure, slab slippage or breakage. Always verify authenticity and purchase through authorized channels to ensure safety and performance.

Why choose the Aardwolf slab lifters?
The AL60 reduces handling time and risk through a reliable quick-lock latch and side roller guidance, improving workflow in stone fabrication and installation environments. Supplied with a two-year warranty for manufacturing defects.

Technical specifications

• Model: AL60
• Grip range: 15 – 60 mm (5/8" – 2 3/8")
• Working load limit (WLL): 1200 kg (2646 lb)
• Net weight: 26.8 kg (59.08 lbs)
• Gross weight: 27.8 kg (61.29 lbs)
• Packaging dimensions: 330 × 230 × 450 mm (13" × 9" × 17 3/4")
• Material: Cast aluminum
• Safety factor: 2.5:1
• Features: Locking latch, side rollers, rubber-coated clamp plates; compatible with cranes and forklifts
