General description

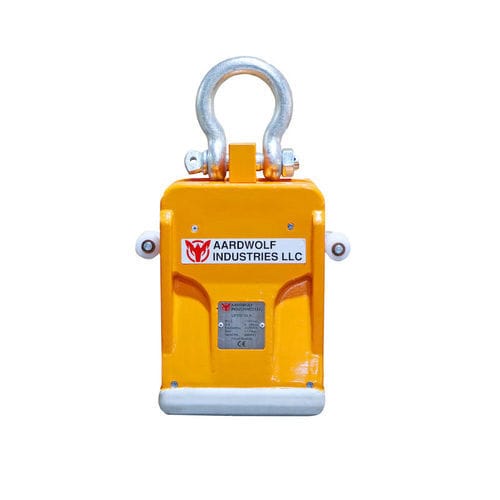

The Aardwolf AL30 is a vertical slab lifter designed for secure gripping and transport of stone slabs. It uses a manual locking latch and an innovative side roller system that glides along the slab's upper edge for fast positioning. Suitable for use with cranes and forklifts, the AL30 is optimized for efficient handling in confined and industrial workspaces.

Key features

• Locking latch mechanism – Manual latch provides a reliable clamping action and simple release.
• Side rollers – Protect slab edges and enable precise centering for balanced lifts.
• Scratch protection – Rubber-coated clamp plates prevent marks on finished surfaces.
• Safety factor 3:1 – Designed to meet industry safety requirements within rated capacity.
• Cast aluminium construction – Durable yet lightweight for easier manoeuvring on site.

Specifications
Grip range — 0 – 30 mm | 0 – 1 1/8"
Working load limit — 1200 kg | 2646 lb
Net weight — 18.6 kg | 41.01 lbs
Gross weight — 19.3 kg | 42.55 lbs
Packaging dimensions — 315 × 165 × 350 mm | 12 3/8" × 6 1/2" × 13 3/4"

Warning: Beware of counterfeit clamps
Counterfeit clamps that imitate Aardwolf designs may use movable jaws supported by elongated side hinges, producing uneven pressure that can cause slab slippage or breakage. Always verify product authenticity and inspect jaw construction before use.

Why choose the Aardwolf AL30?

• Reduces setup time with a simple manual lock and quick positioning via side rollers.
• Compact profile for operation in tight storage racks and work sites.
• Versatile mounting: compatible with cranes and forklift booms.
• Low maintenance and reliable performance for repeated industrial use.

Product details / Technical specifications

• Product code: AL30
• Model / Series: AL30 (Manual Unlock Series)
• Grip range: 0 – 30 mm (0 – 1 1/8")
• Working load limit: 1200 kg (2646 lb)
• Net weight: 18.6 kg (41.01 lbs)
• Gross weight: 19.3 kg (42.55 lbs)
• Packaging dimensions: 315 × 165 × 350 mm (12 3/8" × 6 1/2" × 13 3/4")
• Safety factor: 3:1
• Material: Cast aluminium
• Protection: Rubber-coated clamp plates
• Roller system: Side rollers for edge protection and centering
• Compatibility: Designed for use with cranes and forklifts
