Slab lifting clamp AL75

stoneslabvertical

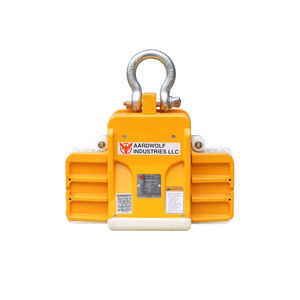

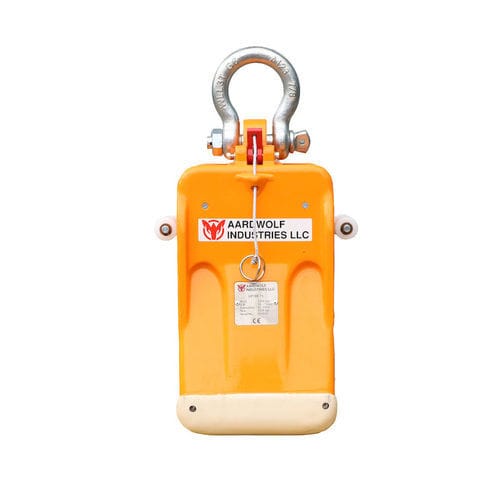

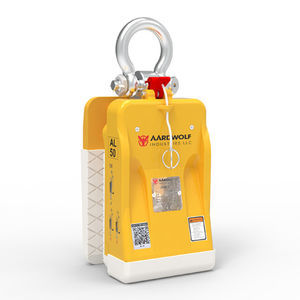

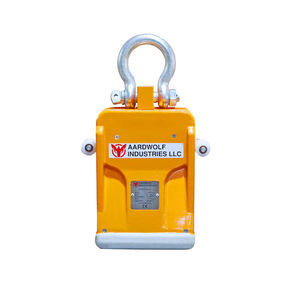

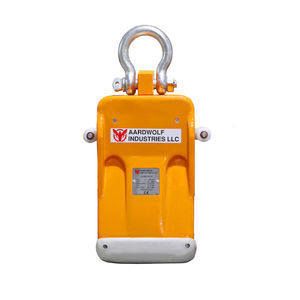

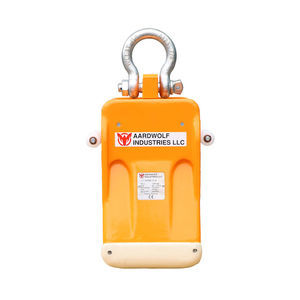

The Aardwolf Slab Lifter AL75R is a heavy-duty vertical lifting clamp designed for the safe handling, lifting and positioning of stone slabs, including granite and marble. With a 1,200 kg working load limit and a 30–75 mm grip range, it is suitable for stone fabrication workshops, warehouses and construction applications.

The lifter features a reliable locking latch mechanism that allows the jaws to be securely locked and released during slab handling. Integrated side rollers allow the lifter to move smoothly along the upper edge of the slab, helping operators position and center the clamp before lifting while reducing the risk of edge damage.

The clamping plates are coated with high-friction rubber, providing a secure grip while helping protect finished stone surfaces from scratches and marking.

Manufactured from strong cast aluminum, the AL75R combines high lifting capacity with a relatively lightweight and compact construction. Its design makes it suitable for use with cranes and forklift lifting attachments, including applications where working space is limited.The Aardwolf Slab Lifter AL75R is a heavy-duty vertical lifting clamp designed for the safe handling, lifting and positioning of stone slabs, including granite and marble. With a 1,200 kg working load limit and a 30–75 mm grip range, it is suitable for stone fabrication workshops, warehouses and construction applications.

The lifter features a reliable locking latch mechanism that allows the jaws to be securely locked and released during slab handling. Integrated side rollers allow the lifter to move smoothly along the upper edge of the slab, helping operators position and center the clamp before lifting while reducing the risk of edge damage.

The clamping plates are coated with high-friction rubber, providing a secure grip while helping protect finished stone surfaces from scratches and marking.

Manufactured from strong cast aluminum, the AL75R combines high lifting capacity with a relatively lightweight and compact construction. Its design makes it suitable for use with cranes and forklift lifting attachments, including applications where working space is limited.

Key Features

• Locking latch mechanism – Manual latch secures the jaws during lift and enables controlled release on placement.
• Side rollers – Allow smooth sliding on the slab edge for correct centering and reduced edge impact.
• Scratch protection – Rubber-coated clamp plates protect finished surfaces during handling.
• Safety factor 2.5:1 – Designed to operate within rated capacity with an established safety margin.
• Cast aluminium construction – Balances structural strength with manageable weight for handling and transport.

Specifications
Metric | Imperial
Grip range: 30 – 75 mm | 1 1/4 in – 3 in
Working load limit: 1200 kg | 2646 lb
Net weight: 27.0 kg | 59.52 lbs
Gross weight: 28.0 kg | 61.73 lbs
Packaging dimensions: 330 × 230 × 450 mm | 13 in × 9 in × 17 3/4 in

Warning
Counterfeit clamps that mimic Aardwolf designs can use movable jaws on elongated side hinges; these variants may concentrate pressure unevenly, increasing the risk of slab slippage or breakage. Use genuine Aardwolf products to ensure rated performance and safety.

Why choose the Aardwolf Slab Lifters?
The AL75 reduces setup time with its quick manual lock, supports safe vertical handling in tight spaces, and adapts to cranes and forklifts. Its front-clamping design simplifies operation on-site. Delivered with Aardwolf authenticity and a two-year warranty.

Technical specifications

• Model / Product Code: AL75
• Grip range: 30 – 75 mm
• Working load limit (WLL): 1200 kg
• Safety factor: 2.5:1
• Net weight: 27.0 kg
• Gross weight: 28.0 kg
• Packaging dimensions: 330 × 230 × 450 mm
• Material: Cast aluminium
• Protection: Rubber-coated clamp plates
• Features: Locking latch mechanism, side rollers for edge protection and centering
• Compatibility: Designed for cranes and forklifts
• Warranty: Two-year warranty
