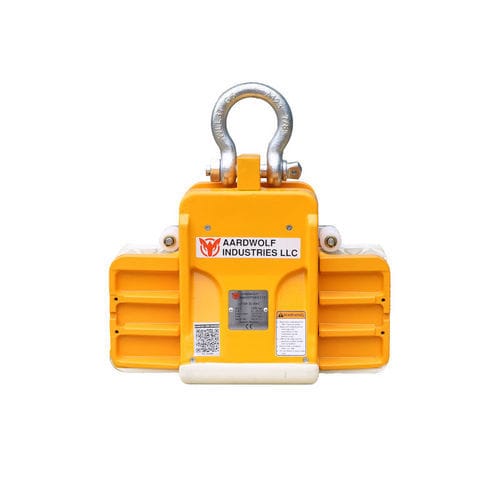

Slab lifting clamp AL30AWJ

stoneslabvertical

The Aardwolf AL30AWJ Automatic Slab Lifter is designed for lifting and handling thin stone slabs, engineered porcelain, ceramic panels, and other thin sheet materials. With a 0–30 mm grip range and 1,200 kg working load limit, this slab lifting clamp provides a practical solution for stone fabrication facilities, warehouses, and professional material handling applications.

Designed with extra-wide jaws, the AL30AWJ provides a larger contact area with the slab to improve stability and balance during lifting. Rubber-covered clamping plates provide a secure grip while helping protect finished surfaces from scratches and damage. Integrated side rollers also assist with positioning the lifter onto the slab and help protect slab edges during handling.

The gravity-operated automatic locking mechanism allows the clamp to grip and release the load automatically during the lifting cycle, reducing the need for manual intervention. Its compact design makes it suitable for confined handling areas, while compatibility with cranes and suitable forklift lifting attachments provides flexibility across a range of stone and panel handling operations.

Key Features of the Slab Lifter

• Extra-wide jaw design: promotes balanced lifting across varied slab sizes.
• Auto-lock and auto-unlock mechanism: gravity-actuated locking pin secures slabs during pick-up and releases on set-down for efficient handling.
• Scratch-free clamp plates: rubber coating prevents surface damage to delicate materials.
• Side rollers: allow precise centering and controlled placement of slabs.
• Safety factor 3:1: designed to meet industry safety requirements.
• Compact design: narrow profile for maneuvering in restricted spaces.
• Warranty: 2-year manufacturer warranty from Aardwolf.

Specifications
Item — Metric — Imperial
Grip range — 0 – 30 mm — 0 – 1 1/8"
Working load limit — 1200 kg — 2646 lb
Net weight — 25.3 kg — 55.8 lbs
Gross weight — 26.0 kg — 57.3 lbs
Packaging dimensions — L.440 × W.150 × H.360 mm — 17 1/4" × 6" × 14 1/4"

Why Choose the Aardwolf Slab Lifter?

• Designed for thin materials: extra-wide jaws accommodate thin stone, engineered porcelain and ceramic slabs.
• Improved efficiency: auto-lock mechanism and side rollers simplify lifting and placement operations.
• Reliable safety: 3:1 safety factor for consistent performance in routine lifting tasks.
• Trusted manufacturing: built by Aardwolf for long service life in industrial environments.
• Space-efficient: compact profile suited to tight workspaces.

Technical specifications

• Model: AL30AWJ
• Grip range: 0 – 30 mm (0 – 1 1/8")
• Working load limit (WLL): 1200 kg (2646 lb)
• Net weight: 25.3 kg (55.8 lbs)
• Gross weight: 26.0 kg (57.3 lbs)
• Packaging dimensions: L.440 × W.150 × H.360 mm (17 1/4" × 6" × 14 1/4")
• Safety factor: 3:1
• Jaw protection: Rubber-coated clamp plates (scratch-free)
• Additional features: Gravity-controlled auto-lock pin; side rollers for centering
• Warranty: 2 years
