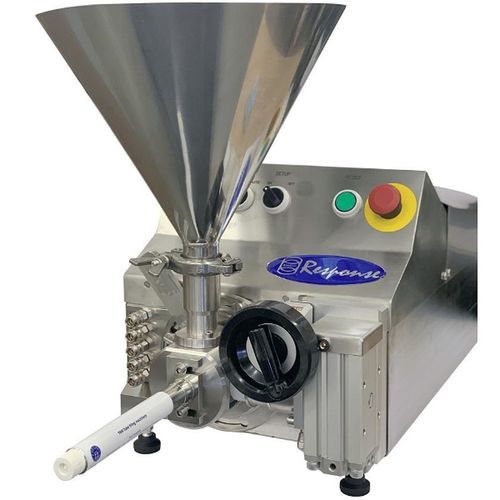

Automatic filling machine Response

for tubesfor pasty productsfor viscous products

Overview
High-accuracy, hygienic benchtop tube filling machine for creams, gels and pastes. Designed to minimise waste and maximise productivity for laboratory and small-batch production, with rapid tool-free cleaning and pharmaceutical-grade materials.

Key features

• Accurate & Efficient Filling — Consistent, repeatable filling performance with industry-leading accuracy (±0.25%) to reduce product waste and improve yield in lab and small-scale production.
• Compact & Practical Design — Benchtop form factor ideal for laboratories and small production areas with limited space.
• Quick-Strip for Fast Cleaning — Tool-free full disassembly and cleaning in approximately three minutes to minimise downtime and support hygiene protocols.
• Versatile Tube Filling Capability — Suitable for creams, gels, ointments and thick pastes across a wide viscosity range; interchangeable nozzles for different product types and tube formats.
• Flexible Nozzle & Filling Options — Vertical filling using curved or cut-off nozzles; locating fixtures ensure repeatable tube alignment; straight close-fitting nozzles allow back-fill into aluminium tubes for thicker ointments.
• Hygienic, Pharmaceutical-Grade Construction — All product-contact parts in 316L stainless steel and virgin PTFE; FDA-compliant materials; standard seals FKM (Viton) with EPDM, silicone and FFKM options.
• Customisable Output & Safety Options — Configurable with one or two filling heads; ATEX-compliant version available for flammable or volatile products.

Service & Maintenance
The machine's hygienic design and pharmaceutical-grade materials, combined with tool-free quick-strip construction, enable fast, thorough cleaning that supports compliance with FDA and international pharmaceutical standards while minimising production downtime.

Technical table
Specification | Single Head | Double Head
Typical Product Output | Up to 16 per min | Up to 20 per min
Fill Volume Range | 5 ml - 500 ml | 5 ml - 100 ml
Machine Height without hopper | 340 mm | 340 mm
Machine Width | 343 mm | 343 mm
Machine Weight | 41 kg | 44 kg
Compressed Air Consumption | 5 L at 6 bar | 5 L at 6 bar

Technical characteristics

• Typical product output: up to 16 per minute (single head) / up to 20 per minute (double head)
• Fill volume range: 5 ml – 500 ml (single head); 5 ml – 100 ml (double head)
• Machine height (without hopper): 340 mm
• Machine width: 343 mm
• Machine weight: 41 kg (single head) / 44 kg (double head)
• Compressed air consumption: 5 L at 6 bar
• Product-contact materials: 316L pharmaceutical-grade stainless steel and virgin PTFE
• Seals: standard FKM (Viton); optional EPDM, silicone, FFKM
• Regulatory / compliance: FDA-compliant materials used throughout; designed to support GMP standards
• Cleaning: quick-strip tool-free disassembly for cleaning in approx. 3 minutes
• Nozzle options: curved nozzle, cut-off nozzle, straight close-fitting nozzle for back-fill into aluminium tubes
• Tube positioning: vertical positioning with locating fixtures for repeatable alignment; can be supplied to suit tube samples
• Configuration: available with one or two filling heads
• Safety options: ATEX-compliant version available for flammable/volatile products
• Filling accuracy: ±0.25%
• Suitable for: creams, gels, ointments and thick pastes across pharmaceutical, cosmetic, personal care, chemical and food industries
