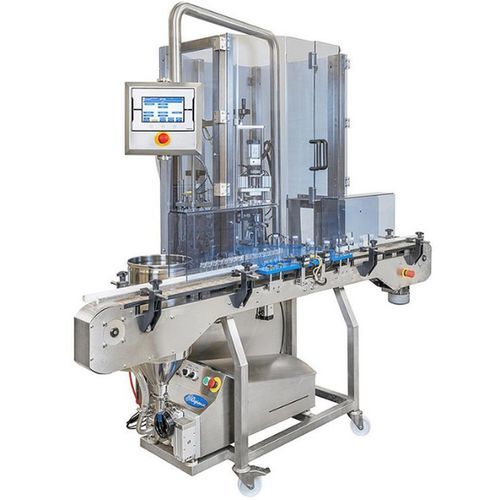

Automatic filling and capping machine Monobloc 250

for liquidsmonoblocvolumetric

Overview
Compact, high-accuracy filling and capping system for bottles, jars and vials. Designed for integrated filling and capping in small to medium production areas.

Product details

• Fast & efficient: Fill and cap up to 35 containers per minute with an accuracy of ±0.25%, reducing waste and maximising yield.
• Compact footprint: Monobloc design integrates filling and capping in one unit for reduced floor space requirements.
• Quick-strip design: Changeover between products or container sizes in minutes to minimise downtime.
• Versatile filling range: Product text references fill volumes from 5 ml to 250 ml; the technical table lists 5 ml – 500 ml (see technical specifications).
• Hygienic construction: Product-contact parts in 316L stainless steel, FKM (Viton) and PTFE. Hose connections available in food-grade PVC or silicone.
• User interface: HMI touchscreen for recipe management, precise adjustment and simplified operation.
• Modular options: Incorporates a removable Response Benchtop Filler for standalone use; can be configured with a peristaltic pump.

Service & Maintenance
All product-contact parts are 316L stainless steel and PTFE, designed for easy disassembly and cleaning to meet FDA and international pharma-quality compliance.

Technical specifications

• Typical product output: 30 - 35 per min
• Fill volume range (table): 5 ml – 500 ml
• Fill volume range (product text): 5 ml – 250 ml
• Machine height: 2032 mm
• Machine width: 1120 mm
• Machine weight: 275 kg
• Standard electrical supply: 3 phase 400V, 50 Hz + Neutral
• Compressed air consumption: 7.5 L at 6 bar
• Maximum bottle diameter: 85 mm (outer diameter)
• Maximum bottle height: 250 mm
• Maximum cap diameter: 45 mm
• Materials in product contact: 316L stainless steel, FKM (Viton), PTFE; hose options: food-grade PVC or silicone
• Integrated options: removable Response Benchtop Filler (standalone) and peristaltic pump configuration available
• Operator interface: HMI touchscreen for recipe and adjustment control
