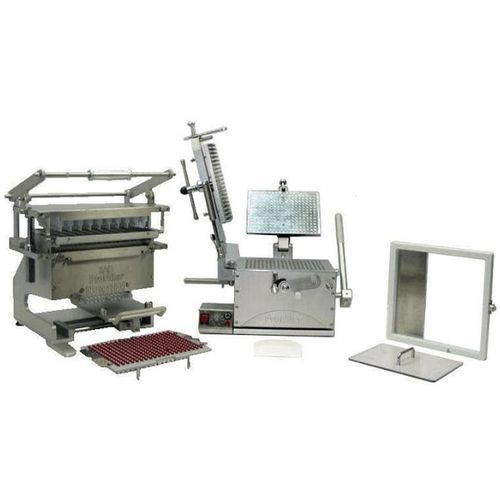

Manual filling machine ProFiller 3800

capsulecapsulefor the pharmaceutical industry

Product overview

• High Output Capsule Production
  Capable of producing up to 9,000 capsules per hour, significantly increasing production capacity and operational efficiency.
• Processes 300 Capsules Per Cycle
  Efficiently orients, separates, fills and fully locks 300 capsules simultaneously, ensuring consistent and repeatable batch performance.
• Patented High-Speed Filling Technology
  Advanced filling system delivers up to 35% faster operation than comparable capsule fillers, reducing processing time and improving workflow efficiency.
• Exceptional Filling Accuracy & Reduced Product Waste
  Provides precise dosing within ±1–3% of average capsule weight using recognised USP/EP filling methodology, supporting product uniformity and minimising material loss.
• Pharmacopoeia & GMP Quality Compliance
  Designed to meet stringent pharmaceutical manufacturing standards, ensuring suitability for regulated production and laboratory environments.
• Flexible Capsule Size Compatibility
  Change parts are available for capsule sizes 00–4, allowing manufacturers to process a wide range of product formulations.
• Hygienic 316L Pharmaceutical Grade Stainless Steel Construction
  Corrosion-resistant, pharmaceutical-grade stainless steel construction ensures long-term durability, easy cleaning and contamination control.
• Designed For Reliable & Efficient Operation
  Simple and intuitive design supports fast setup, smooth operation and reduced operator training requirements.
• Upgradeable & Customisable System
  Compatible with a wide range of optional accessories, including powder vibrators, enabling optimisation for different formulation properties and production demands.

Service & maintenance
Fully dishwasher safe design for easy cleaning; allows thorough cleaning and sterilisation using automated washing processes, reducing downtime and improving hygiene assurance.

Technical table
Model | Capacity | Max Output
ProFiller 3800 Capsule Filler | 300 per cycle | 9000 per hour

Characteristics / technical specifications

• Model: ProFiller 3800
• Capacity per cycle: 300 capsules
• Maximum output: up to 9,000 capsules per hour
• Filling accuracy: approximately ±1–3% of average capsule weight (USP/EP methodology)
• Capsule size compatibility: change parts for sizes 00 to 4
• Construction: 316L pharmaceutical grade stainless steel
• Compliance: designed to meet pharmacopoeia and GMP manufacturing standards
• Key technologies: patented high-speed filling technology (up to 35% faster vs comparable fillers)
• Operation: manual high-performance system designed for pharmaceutical, nutraceutical and compounding applications
• Upgradeability: supports optional accessories (e.g. powder vibrators) for different formulations
• Cleaning: fully dishwasher safe design for easy cleaning and sterilisation
