Automatic filling machine
for low-viscosity liquidsliquidsoil

Automatic filling machine - Adelphi - for low-viscosity liquids / liquids / oil
Automatic filling machine - Adelphi - for low-viscosity liquids / liquids / oil
Automatic filling machine - Adelphi - for low-viscosity liquids / liquids / oil - image - 2
Automatic filling machine - Adelphi - for low-viscosity liquids / liquids / oil - image - 3
Add to favorites
Compare this product
Go to the Adelphi website for more information

Characteristics

Operational mode
automatic
Product applications
for pasty products, liquids, oil, for low-viscosity liquids, for corrosive products
Domain
for the pharmaceutical industry, for the chemical industry, medical, laboratory
Number of heads
with 1 head
Other characteristics
bench-top
Throughput

Min.: 0 p/h

Max.: 1,500 p/h

Volume

Min.: 10 ml
(0.3 US fl oz)

Max.: 1,000 ml
(33.8 US fl oz)

Machine width

343 mm
(14 in)

Machine height

340 mm
(13 in)

Machine weight

41 kg
(90.39 lb)

Description

Product overview

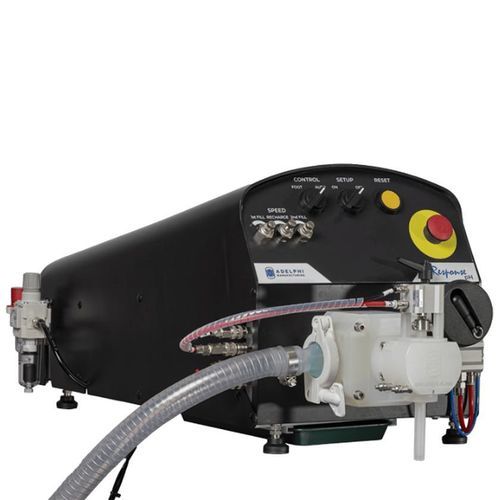

The Response Benchtop pH Filler is a corrosion-resistant benchtop filling machine engineered for caustic and acidic products. It delivers high filling accuracy, quick-strip cleaning and scalable automation options for laboratory, pilot-scale and small-batch production of corrosive or chemically reactive liquids.

Key features
  • Innovative pump set and filling-head design: designed to handle a wide range of corrosive products; suitable for liquids, oils, gels and light creams.
  • Corrosion-resistant product contact parts: polypropylene, titanium, PTFE and PVC for high chemical compatibility.
  • Enhanced machine protection: polypropylene covers and a PTFE-coated 316L stainless steel front plate prioritise corrosion resistance while maintaining structural integrity.
  • Precise and repeatable fills: consistent dosing reduces product waste and improves process efficiency for small-batch and laboratory production.
  • Wide fill range with interchangeable pump sets: standard interchangeable pump sets (3–4 options depending on configuration) cover a broad volume range; pump cylinders are electropolished for improved hygiene.
  • Flexible product feed: low-viscosity liquids drawn from bulk via suction hose and non-return valve; thicker products fed from hopper systems with multiple hopper sizes.

Service & Maintenance
Hygienic, pharmaceutical-grade construction: product contact parts can be supplied in 316L stainless steel and virgin PTFE. Standard sealing materials include FKM (Viton), with alternatives such as EPDM, silicone and FFKM. Food-grade PVC suction hoses are used where applicable. The quick-strip design enables fast, thorough cleaning to support strict hygiene protocols and minimise downtime.

Applications
  • Corrosive and aggressive chemicals
  • Industrial and cleaning liquids
  • Pharmaceutical and diagnostic liquids
  • Oils, gels, light creams and pastes

Technical specifications
  • Typical product output (single head): Up to 25 per min
  • Fill volume range: 10 ml - 1000 ml
  • Machine height (without hopper): 340 mm
  • Machine width: 343 mm
  • Machine weight: 41 kg
  • Compressed air consumption: 5 L per cycle at 6 bar
  • Product-contact materials: 316L stainless steel (PTFE-coated front), PTFE, polypropylene, titanium, PVC
  • Sealing materials: FKM (Viton) standard; EPDM, silicone, FFKM optional
