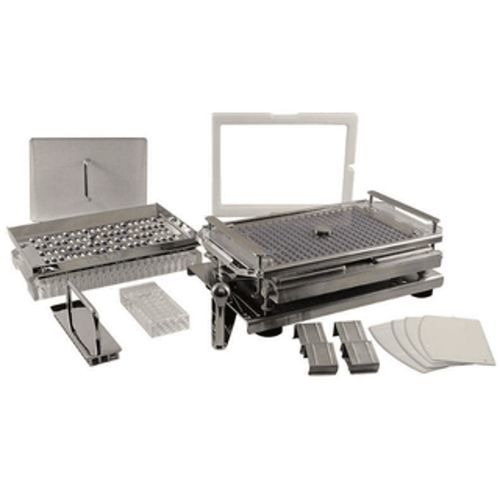

Manual filler ProFiller 3600

powdercapsulefor the pharmaceutical industry

Product overview
The ProFiller 3600 Capsule Filler is a high-capacity manual capsule filling system designed to deliver speed, dosing accuracy and operational flexibility for pharmaceutical and nutraceutical production.

Key features

• High-capacity capsule filling performance
  Capable of producing up to 6,900 capsules per hour to support larger batch throughput.
• Processes 300 capsules per cycle
  Efficiently orients, separates, fills and closes 300 capsules per cycle for consistent output.
• Upgradeable from hand-held to benchtop system
  Modular design allows operation as a hand-held filler or upgrade to a benchtop configuration for scalability.
• Patented high-efficiency filling design
  Patented filling technology delivers up to 35% faster operation compared with similar equipment.
• Exceptional filling accuracy & reduced product waste
  Provides precise dosing within ±1–3% of average capsule weight using USP/EP filling methodology to minimise material loss.
• Flexible capsule size compatibility
  Change parts available for capsule sizes 000–4 and all EL capsule sizes to accommodate various formulations.
• Hygienic 316L pharmaceutical-grade stainless steel construction
  Manufactured in corrosion-resistant 316L stainless steel to ensure product purity and longevity.
• Tool-free disassembly for fast cleaning & maintenance
  Designed for quick dismantling without tools to reduce downtime between batches.
• Optimised for controlled production environments
  Suitable for use under powder extraction hoods or inside glove-box isolators for safe handling of potent powders.
• Extensive accessories & change parts availability
  Optional accessories such as powder vibrators and additional size change components enable system customisation.

Service & maintenance
Fully dishwasher-safe components permit automated washing and sterilisation processes to reduce cleaning time and support hygiene assurance.

Technical table
Model | Capacity | Max Output
ProFiller 3600 Capsule Filler | 300 per cycle | 6,900 per hour

Characteristics / technical specifications

• Model: ProFiller 3600 Capsule Filler
• Capacity per cycle: 300 capsules
• Maximum output: up to 6,900 capsules per hour
• Filling accuracy: approx. ±1–3% of average capsule weight (USP/EP methodology)
• Compatibility: change parts for capsule sizes 000 to 4 and all EL capsule sizes
• Construction: 316L pharmaceutical-grade stainless steel (hygienic, corrosion-resistant)
• Design: patented high-efficiency filling design (up to 35% faster than similar equipment)
• Operation modes: modular – hand-held operation upgradeable to benchtop system
• Cleaning & maintenance: tool-free disassembly for fast cleaning; fully dishwasher-safe components
• Suitable environments: optimised for powder extraction hoods and glove-box isolators
• Accessories: optional powder vibrators and additional size change components available for customisation
