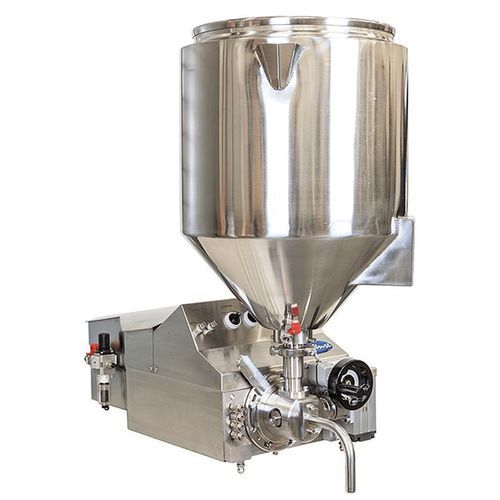

Automatic filling machine

bottleliquidsfor pasty products

Overview
A versatile benchtop filling solution with an integrated heated hopper, designed for products that must be filled warm to maintain flow, consistency and dosing accuracy.

Product details

• Designed for warm & temperature-sensitive products
  Integrated heated hopper maintains consistent product temperature throughout the fill cycle, adapted for warm-fill and temperature-sensitive applications.
• Fast, precise & versatile
  Delivers consistent, repeatable fills at high accuracy to reduce product waste and improve efficiency in small-batch and laboratory production.
• Wide filling range
  Supplied with four standard interchangeable pump sets covering broad dose ranges; electropolished pump cylinders for improved hygiene and cleanability.
• Flexible product feed options
  Allows suction from bulk containers via a pickup hose and non-return valve for thin liquids; thicker products (creams, pastes) fed from hopper systems with multiple hopper sizes available.

Service & maintenance
Hygienic, pharmaceutical-grade construction: all product-contact parts manufactured from 316L stainless steel and virgin PTFE; FDA-compliant materials used throughout. Standard sealing materials include FKM (Viton) with alternatives (EPDM, silicone, FFKM) available. Food-grade PVC suction hoses used where applicable. Quick-strip design permits fast, thorough cleaning to support strict hygiene protocols and minimise downtime.

Options & modularity

• Single or two filling heads
• Integration of up to four benchtop fillers on a Response automation base
• Ability to add capping via Response Monobloc Filler/Capper
• Scalable into larger automated lines including form-fill-seal systems

Nozzle options

• Swage-tip nozzles
• Cut-off nozzles with tip sealing
• Full-bore cut-off nozzles in multiple sizes

Technical specifications (table)
Specification | Single Head | Double Head
Typical Product Output | Up to 40 per min | Up to 60 per min
Fill Volume Range | 5ml - 1L | 5ml - 100ml
Machine Height without hopper | 340 mm | 340 mm
Machine Width | 343 mm | 343 mm
Machine Weight | 41 kg | 44 kg
Compressed Air Consumption | 5L at 6 bar | 5L at 6 bar


Features / technical specifications

• Typical product output: Up to 40/min (single head), Up to 60/min (double head)
• Fill volume range: 5 ml – 1 L (single head), 5 ml – 100 ml (double head)
• Machine height (without hopper): 340 mm
• Machine width: 343 mm
• Machine weight: 41 kg (single), 44 kg (double)
• Compressed air consumption: 5 L at 6 bar
• Integrated temperature-controlled heated hopper for warm-fill applications
• Four standard interchangeable pump sets to cover broad dose ranges
• Electropolished pump cylinders for improved hygiene and cleanability
• Product-contact materials: 316L stainless steel and virgin PTFE; FDA-compliant materials used throughout
• Standard sealing: FKM (Viton); alternative seals available (EPDM, silicone, FFKM)
• Food-grade PVC suction hoses where applicable
• Quick-strip design for fast, thorough cleaning
• Interchangeable nozzle options including swage tips, cut-off nozzles with tip sealing, and full-bore cut-off nozzles in multiple sizes
• Scalable/upgradeable: single or two filling heads; integration of up to four benchtop fillers on an automation base; options to add capping or automate into larger systems
