Automated filling machine

bottlefor liquid productsfor the chemical industry

Overview

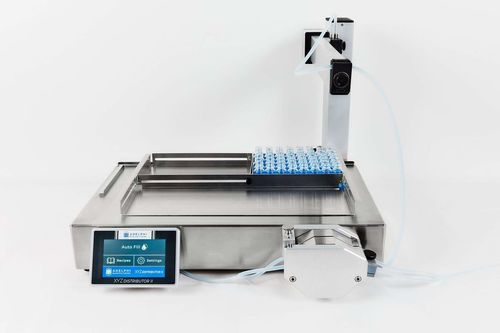

The Adelphi XYZ Distributor II is a compact, high-precision peristaltic benchtop filling system designed for small-batch production, laboratories and R&D. Combining the filling head and XYZ base into a single integrated unit, it supports automated, contamination-controlled filling of bottles and vials arranged on adjustable trays.

Design & operation
Engineered to work with Adelphi peristaltic technology, the system provides precise XYZ movement and controlled nozzle positioning for above-neck or in-neck dosing, with single-start tray filling and compatibility with standard tray formats.

Key features

• Precision filling
  Dual-channel peristaltic dispensing delivers accurate, repeatable fills while minimising pulsation, splashing and foaming.
• Hygienic operation
  Integrated construction and low particle generation suitable for cleanroom and laminar-flow environments; maintenance-free drive reduces contamination risk.
• Compact benchtop design
  Space-saving single-unit layout for easy transport and integration on laboratory benches.
• Product contact materials
  Platinum-cured silicone tubing, acetal connectors and 316L stainless-steel nozzles for clean, reliable product contact.
• User interface & control
  Touchscreen HMI with recipe storage and USB program backup for fast setup and repeat runs.
• Improved tubing management
  Enhanced support reduces tubing movement and prevents contact with containers to increase process stability.

Service & maintenance
Hygienic stainless-steel construction allows easy cleaning and is suitable for pharmaceutical environments; components are designed for reduced maintenance and long-term precision performance.

Performance notes
Accuracy ±0.5% for fill volumes of 3 ml and above; adjustable drip delay 0.0–2 s to fine-tune dispensing.

Technical specifications

• Electricity: 100–240 VAC, 50/60 Hz, 220 W
• Movement travel: X = 400 mm, Y = 250 mm, Z = 180 mm
• Control electronics: Microprocessor-based HMI
• Weight: Approx. 20 kg
• Dimensions (distributor): 591 × 513 × 450 mm
• Control unit dimensions: 200 × 280 × 180 mm
• Drip delay: 0.0–2 s (adjustable)
• Max container height: up to 200 mm (with width restrictions)
• Minimum neck opening: 8 mm
• Usable tray area: max. 400 × 250 mm; min. 193 × 143 mm
• Product contact materials: platinum-cured silicone, acetal, 316L stainless steel
• Accuracy: ±0.5% for fills ≥ 3 ml
