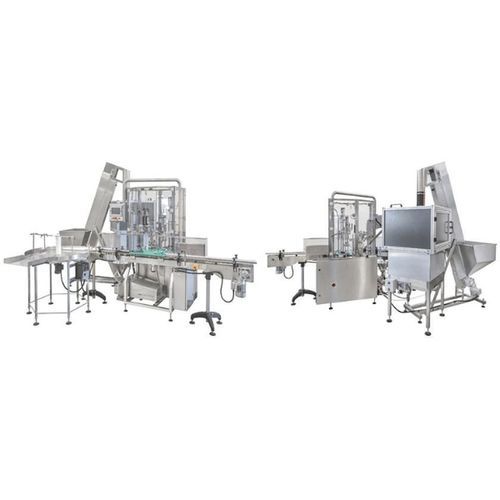

Automatic filling and capping machine 1000

for glass bottlesmonoblocwith feed hopper

Product overview
High-accuracy filling and capping system engineered for precision, hygiene and performance. Automatic filling and capping for bottles and jars with optional vacuum capping for oily or viscous products. All product-contact parts are 316L stainless steel, FKM and PTFE; food-grade hose options available.

Key features

• Fast, accurate and reliable: Fill and cap 15–25 containers per minute with ±0.25% accuracy to reduce waste and improve profitability.
• Compact footprint: Space-efficient Monobloc design combining filling and capping in a single unit, suitable for small to medium production areas.
• Quick-strip design: Disassembles quickly for cleaning, minimising downtime between production runs.
• Flexible fill range: Configured for volumes from 50 ml to 1000 ml, ideal for bottles, jars and screw-top vials.
• Hygienic, durable construction: Product-contact components in 316L stainless steel, FKM and PTFE; hoses available in food-grade PVC or silicone.
• Optional vacuum capping: Vacuum sealing option to prevent oil leakage for viscous or oily products (e.g. nut butters).
• User-friendly interface: HMI touchscreen for recipe management, precise adjustments and simplified operation.
• Modular efficiency: Incorporates the Response benchtop filler which can be operated independently for flexible production setups.

Technical specifications
Typical product output — 15 - 25 per min
Fill volume range — 50 ml - 1000 ml
Machine height (without hopper) — 2032 mm
Machine width — 1310 mm
Machine weight — 295 kg
Standard electrical supply — 3 phase 400V, 50 Hz + Neutral
Compressed air consumption — 7.5 L at 6 bar
Maximum bottle diameter — 110 mm (outer diameter)
Maximum bottle height — 200 mm
Maximum cap diameter — 85 mm

Service & Maintenance
All product-contact parts are manufactured from 316L stainless steel and PTFE and conform to FDA and international pharma-quality standards. Design allows quick disassembly for cleaning and simplified maintenance to minimise downtime.

Characteristics / technical specifications

• Output rate: 15–25 containers per minute
• Filling accuracy: ±0.25%
• Fill volume range: 50 ml – 1000 ml
• Machine height (without hopper): 2032 mm
• Machine width: 1310 mm
• Machine weight: 295 kg
• Electrical supply: 3 phase 400V, 50 Hz + Neutral
• Compressed air: 7.5 L at 6 bar
• Max bottle diameter: 110 mm (outer diameter)
• Max bottle height: 200 mm
• Max cap diameter: 85 mm
• Materials (product contact): 316L stainless steel, FKM, PTFE; hose options: food-grade PVC or silicone
• Optional feature: Vacuum capping for oil/viscous products
• Interface: HMI touchscreen with recipe management
