Automatic filling machine

bottlefor liquidsfor the pharmaceutical industry

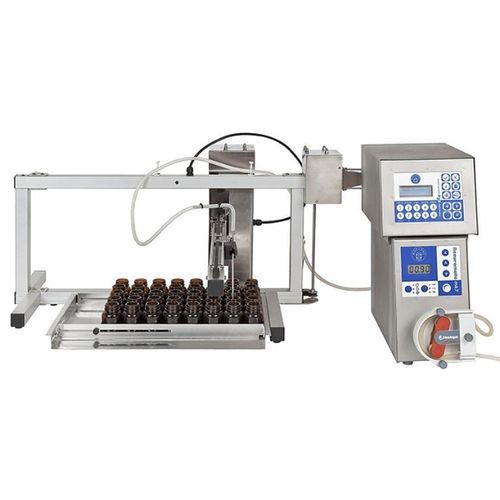

Product overview The XYZ Distributor is an automatic tray-based bottle and vial filling system designed to be used with the Accuramatic Peristaltic Dispenser for precise, tray-based laboratory and small-batch filling. The unit uses a Z-axis diving nozzle to permit filling either above the neck or into the neck, minimising splashing and enabling accurate placement of liquid.

Product details The system automatically fills bottles and vials positioned in trays. The Z-axis controls the diving nozzle movement for repeatable dosing and accurate vertical positioning. Adjustable trays are supplied to hold containers securely; bespoke trays can be manufactured for irregular or custom-shaped containers. The frame supports straight-row and honeycomb tray layouts and is intended for controlled, small-batch production and laboratory applications when paired with the Accuramatic Peristaltic Dispenser.

Key features

• Control box positioned remotely from moving nozzle frame, suitable for use in laminar flow cabinets
• Adjustable trays supplied to keep bottles and vials orderly
• Menu-driven LCD displays for straightforward setup and operation
• Custom trays available to accommodate non‑standard container geometries
• Capable of filling straight-row and honeycomb tray configurations

Service & Maintenance Constructed in stainless steel for hygienic operation and straightforward cleaning. The design facilitates routine cleaning and maintenance consistent with pharmaceutical laboratory and cleanroom practice.

Applications & compatibility

• Designed to operate with the Accuramatic Peristaltic Dispenser for controlled volumetric dosing
• Suitable for a wide range of bottles and vials, including customised shapes via adjustable or bespoke trays
• Compact filling frame and remote control box allow installation within laminar flow cabinets
• Appropriate for laboratory, R&D and small-batch production environments

Technical specifications

• Electricity (selectable): 240 V AC, 50/60 Hz, 500 W (120 V optional)
• Movement space (mm): X = 520, Y = 335, Z = 155
• Electronics: Microprocessor control
• Weight (kg): Control: 4.5; XYZ unit: 9.0
• Overall dimensions (mm): 790 × 625 × 390
• Control box dimensions (mm): 200 × 280 × 180
• Drip delay: 0.0 – 0.9 s
• Max vial height (mm): 200
• Min neck opening (mm): 8
• Tray fill area (mm): 410 × 265
