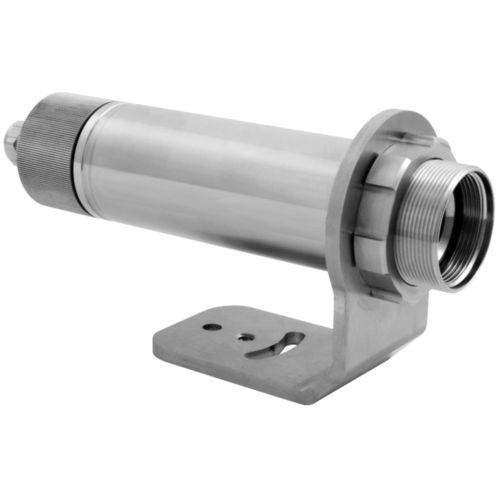

Infrared sensor AMiR 7834 series

infrared sensor
infrared sensor
Add to favorites
Compare this product


Description

• Precise measurement of the surface temperature in industrial processes. • Sturdy stainless steel housing, protection class IP65. • Broad temperature range from -40 to 2000 °C. • Designs and specifications see data sheet. Technical data and functions • Several spectral ranges for a variety of materials and use cases. • Emissivity of the measuring surface can be manually adjusted on the probe head. • Several optical resolutions and focal points. • Integrated laser (except 7834-10) for easy positioning of the probe head. Supply of the laser via the USB port. • Analog output 4 to 20 mA in two-wire technology. • USB port for configuring the analog output range, further probe head parameters and the signal processing (average value, maximum value, and minimum value). • Easy installation. Extensive range of accessories, i.a. a high temperature protective housing.
