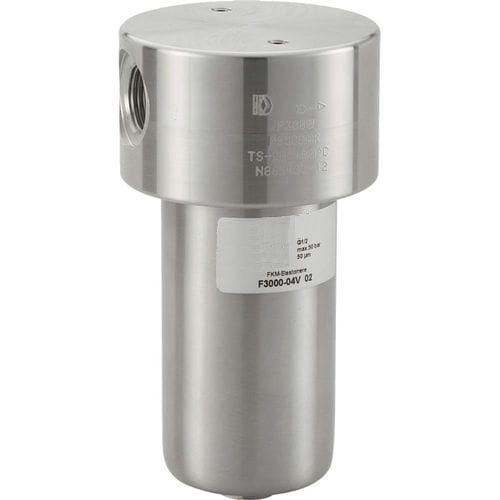

Air filter F3000
gascompressed aircartridge

air filter
air filter
Add to favorites
Compare this product


Characteristics

Designed for
air, gas, compressed air
Filtration element
cartridge
Material
stainless steel
Operating pressure

50 bar
(725.189 psi)

Filtration size

Min.: 5 µm

Max.: 50 µm

Flow

Min.: 750 l/min
(198.129 us gal/min)

Max.: 16,000 l/min
(4,226.753 us gal/min)

Description

Filter with bowl without sight glass, completely made of stainless steel, extremely robust, suitable for compressed air, gases or liquids. Application examples are the chemistry, petroleum processing as well as food industry and medical technology. Filter element 50 pm, optionally 5 pm. made of stainless Steel, coalescing filer 0.1 pm at 99,99% Bowl stainless Steel version without sight glass Drainage screw plug as standard optionally for compressed air only: manual drain (max. 30 bar), automatic drain (max. 16 bar) Operating pressure max. 50 bar (without drain), optionally manual drain (max. 30 bar) or automatic drain (max. 16 bar) Température range 0 °C to 80 °C / 32 °F to 176 °F for FKM or EPDM 0 °C to 130 °C / 32 °F to 266 °F for high température version, for appropriately conditioned compressed air down to -20 °C / -4 °F. or bw température version down to -40°C / -40 °F Material Body: stainless Steel 316L, material no. 1.4404 Bowl: stainless Steel 316L. material no. 1.4404 Elastomer: FKM. optionaly EPDM Inner valve: stainless Steel 316L. material no. 1.4404
