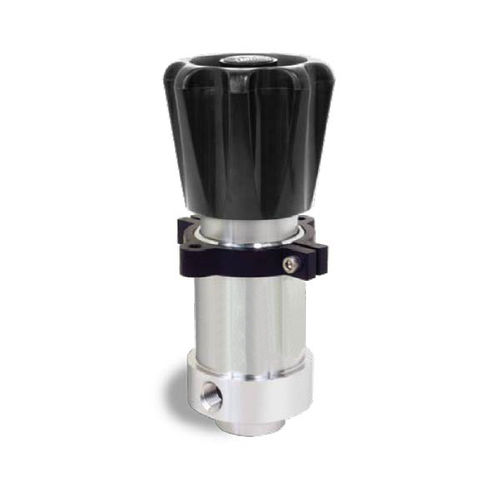

Water pressure regulator HP306for gasfor compressed airfor inert gases
Add to favorites
Compare this product
Characteristics
- Product
- for water, for gas, for compressed air, for inert gases, for oxygen, for nitrogen
- Technology
- piston
- Number of stages
- single-stage
- Material
- stainless steel, NBR
- Applications
- high-pressure, for medical applications, for analytical instruments, for pneumatic applications
- Other characteristics
- line, high-performance, rugged, explosion-proof
- Pressure
Min.: 300 mbar
(4.35 psi)Max.: 690,000 mbar
(10,007.6 psi)- Flow
Min.: 3,600 l/min
(951.02 us gal/min)Max.: 7,500 l/min
(1,981.29 us gal/min)
Description
Description
High pressure regulator. piston operated. made of stainless Steel, with high sensitivity. excellent accuracy and reiability.
Media
compressed air and non-corresive gases or liquids (non-relieving version)
Supply Pressure
max. 690 bar optionaly 415 bar or 1034 bar
Accuracy
at supply pressure variation of 7 bar: <100 mbar
Adjustment
by black plastic adjustment dial
Relieving Function
standard relieving. optional non-relieving
Gauge Ports
no ports, optional %’NPT for inlet and outlet pressure, shifted by 60°
Température Range
-40° to 75°C / -40°F to 167°F
Material
Body: stanless Steel 316
Seal: - NBR optional FKM
Valve Seat: Vespel
Inner Valve: stainless - Steel 300
Mounting position: any
Spring Cage: stainless Steel 300
Filter: 40 pm, stainless Steel 300, brass by option U
Relieving Valve: - CTFE
