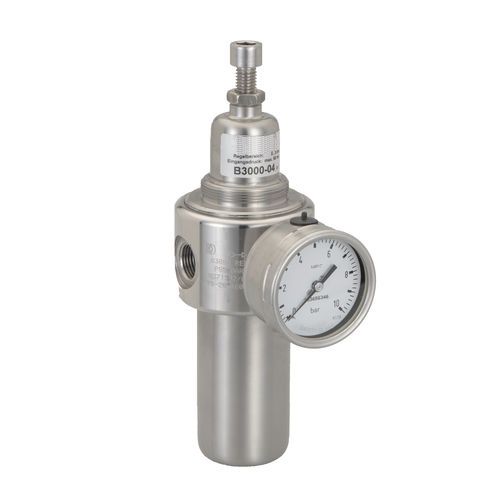

Air filter-regulator B3000
gasliquidcompressed air

air filter-regulator
air filter-regulator
Add to favorites
Compare this product


Characteristics

Designed for
air, gas, liquid, compressed air
Filtration element
cartridge
Applications
for food applications, for medical applications
Material
stainless steel
Filtration size

50 µm

Operating pressure

50 bar (725.189 psi)

Flow

Max.: 20,000 l/min (5,283.441 us gal/min)

Min.: 200 l/min (52.834 us gal/min)

Description

Description Filter pressure regulator with bowl without sight glass, completely made of stainless Steel. Diaphragm-operated, from size G% on piston-operated. Media compressed air. gases or liquids Supply pressure max. 30 bar. - 50 bar or 80 bar (with drain plug only) Adjustment by adjusting screw. from B3000-12 on with T-handle, max. 50 bar for B3000-02 to -16, optionally 80 bar Relieving function relieving. optionally non-relieving Gauge port G1/4 on both sides of the body. G% for B3000-01/-A2, one screw plug supplied Filter element 50 pm and 5 pm, made of stainless Steel - Bowl stainless Steel version without sight glass Drain manual drain (max. 30 bar), screw plug for 50 bar and 80 bar version automatic drain (max. 16 bar) for G1/4 (02) up to G1 Température range 20 °C to 80 °C/ -4 °F to 176 °F for NBR/Buna-N. EPDM or FKM -20 °C to 130 °C / -4 °F to 266 °F for high température version or low température version down to -40 °C / -40 °F Werkstoffe Body / Bowl / Inner valve : stainless Steel 316L material-no. 1.4404 O-rings: FKM. optionally EPDM Diaphragm: NBR/Buna-N with PTFE-coating - .
