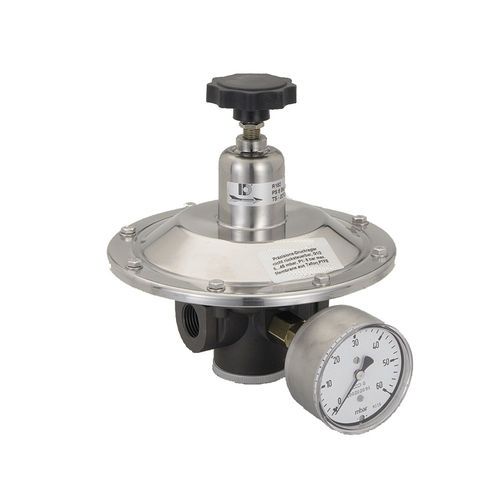

Gas pressure regulator R160for compressed airfor inert gasesfor oxygen
Add to favorites
Compare this product
Characteristics
- Product
- for gas, for compressed air, for inert gases, for oxygen, propane, for nitrogen, for CO2, for hydrogen, for natural gas, for sour gas
- Technology
- membrane
- Number of stages
- single-stage
- Material
- stainless steel, EPDM
- Applications
- industrial, low-pressure, for analytical instruments, for pneumatic applications
- Other characteristics
- direct-operated, flange, zero-bleed, explosion-proof, relieving, non-relieving
- Pressure
Max.: 3,000 mbar
(43.51 psi)7,000 mbar
(101.53 psi)Min.: 5 mbar
(0.07 psi)- Flow
Max.: 8,000 l/min
(2,113.38 us gal/min)Min.: 1,000 l/min
(264.17 us gal/min)
Description
Description
Low pressure regulator with large diaphragm for good accuracy and high sensitivity.
Media
compressed air or non-corrosive gases
Supply pressure
max. 7 bar, min. 1 bar
Air consumption
without constant bleed
Adjustment
for G1/? and GW: - by handwheel with locknot
fron G1: - by hexagon head screw with locknut
Relieving function
non relieving
Gauge port
G1/4 on both sides of the body, screw plug supplied
Mounting position
any
Température range
-20 °C to 80 °C / -4 °F to 176 °F
Material
Body: aluminium coated
O-rings: NBR/Buna-N, optbnally FKM or EPDM
Diaphragm: NBR/Buna-N with PTFE coating
Inner valve: stainless Steel / brass
Spring cage: stainless Steel
