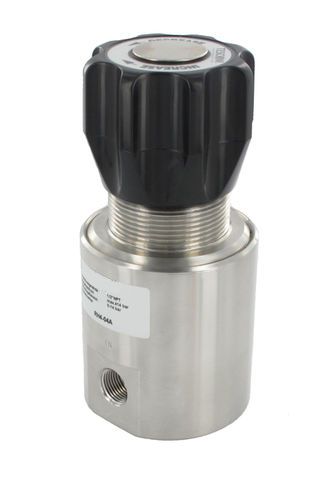

Water pressure regulator RH4

for compressed airfor inert gasesdiaphragm

High pressure regulator with balanced valve design ensuring stable downstream pressure. Excellent for low pressure. Media compressed air, non-corrosive gases or liquids Supply pressure max. 414 bar Exhaust for compressed air or gases: Vi"NPT tapped exhaust for inlet and outlet Leakage bubble-tight Adjustment by black plastic knob, optionally pneumatical control through diaphragm or piston Relieving function for compressed air or gases: relieving for liquids: non-relieving Gauge port non, optionally WNPT for inlet and outlet Mounting position any Température range -26 °C to 74 °C / -15 °F to 165 ”F Weight 2,2 kg Material Body: brass, optionally 316 stainless Steel - 0-rings: NBR/Buna-N, on request FKM, Kalrez, E.P. Main valve seat: - Vespel SP21 - Relieving - valve: Vespel SP21 Inner valve: Monel, stainless Steel - Filter: bronze, 40 pm, only for liquids
