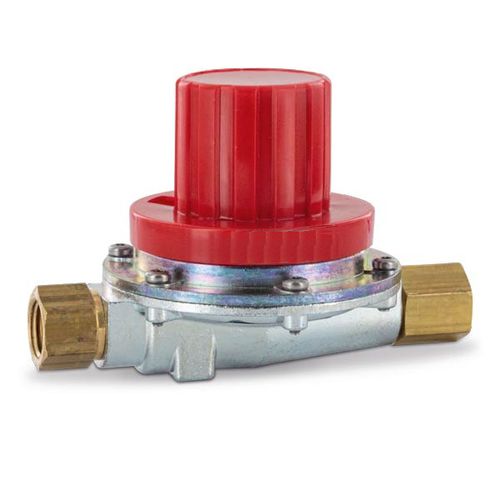

The Low-pressure regulator is a hand-operated, spring-loaded low pressure regulator with diaphragm, and it has unified safety valve, hence it is not good for gas pressure regulation in closed rooms.
Media
ompressed air. propane, butane or other non-corrosive gases
Supply pressure
max. 16 bar at R01-5/-6, max. 10 bar at R01-2/-3/-4 and RL13-5
Accuracy
at min. supply pressure and flow: < 5% FS pressure déviation
at max. supply pressure and flow: < 15% FS pressure déviation
at max. supply pressure without flow: < 25% FS pressure déviation
Air consumption
without constant bleed - Mounting position any
Adjustment
no individual settings
R01 -5/-6: - by adjusting knob a. dial enabling eleven settings for different outlet pressures
R01-2/-3/-4 and RL13-5: by T-handle with tocknut
Relieving function
non-relieving
Gauge port
G1/4 on one side of the body. except on R01-5/-6
Température range
-20 °C to 60 °C / -4 °F to 140 °F
Material
Body: zinc die-cast - Elastomer: NBR/Buna-N - Inner valve: brass
