Compressed air pressure regulator RHB-Sfor inert gasesmembranesingle-stage
Add to favorites
Compare this product
Characteristics
- Product
- for compressed air, for inert gases
- Technology
- membrane
- Number of stages
- single-stage
- Material
- stainless steel
- Applications
- high-pressure, industrial, pneumatic
- Other characteristics
- rugged
- Pressure
Min.: 0.3 bar
(4.35 psi)Max.: 35 bar
(507.63 psi)380 bar
(5,511.43 psi)- Flow
Min.: 0 m³/h
(0 ft³/h)Max.: 420 m³/h
(14,832.16 ft³/h)
Description
Description

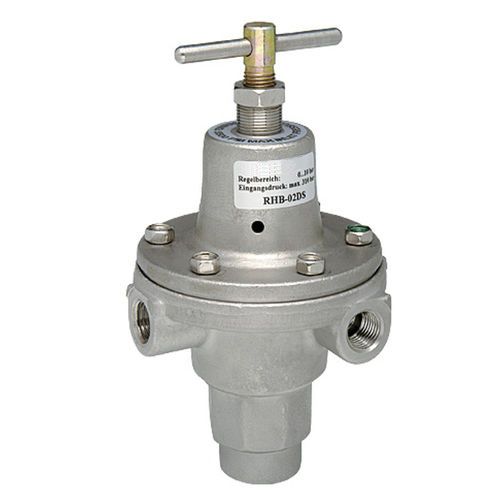

Diaphragm-operated high pressure regulator made of stainless Steel.
Media
compressed air or neutral gases
Supply pressure
max. 380 bar
Adjustment
by T-handle with locknut
Relieving function
non-relieving
Gauge port
1/4 NPT on both sides of the body, screw plugs supplied
Mounting position
any
Température range
0 °C to 106 °C / 32 °F to 223 °F. for appropriately conditioned compressed air down to -40 °C / -40 °F
Material
Body: stainless Steel 316, material no. 1.4401 -
O-rings: - NBFVBuna-N
Diaphragm: Monel 400
Valve seat: nylon, optionally PTFE
VIDEO
