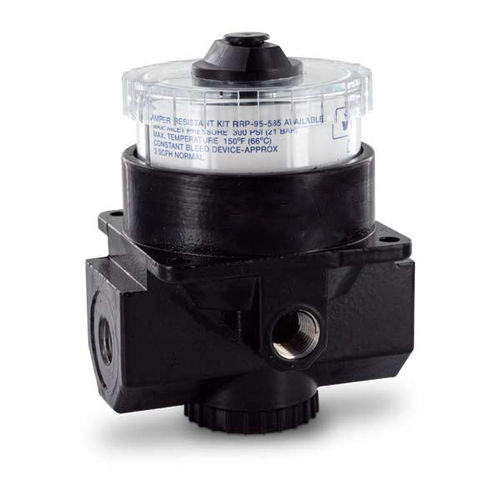

Piston-operated regulator with balanced valve design and high-relief flow.
Features include a transparent pressure-calibrated, non-rising adjusting dial which can be mounted in any position, so the dial face is always visible. Pressure setting in steps is possible.
Media: compressed air
Supply pressure: max. 21 bar, minimum 1 bar above outlet pressure
Air consumption:
R21/31/41: max. 1.4 l/min depending on outlet pressure
R11: without constant bleed
Adjustment:
The full secondary pressure range can be dialed in less than a 270° turn proportional to handwheel with scale in bar or psi. This is advantageous if secondary pressure must be changed frequently.
Relieving function: relieving
Gauge port: R1/4"on both sides of the body, not available at R11
Mounting position: any
Temperature range: 0 °C to 65 °C / 32 °F to 149 °F
Body: zinc die-cast
Piston: acetal
o-ring: NBR/Buna-N
Valve seat: acetal, brass and NBR/Buna-N
