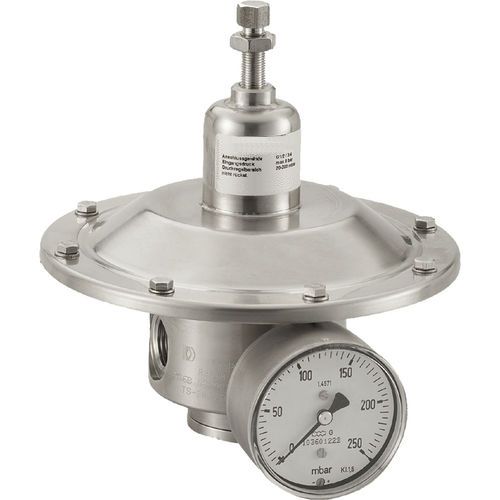

Chemical product pressure regulator R3100for waterfor gasfor compressed air
Add to favorites
Compare this product
Characteristics
- Product
- for chemical products, for water, for gas, for compressed air, for inert gases, for oxygen, propane, for sour gas, for nitrogen, for CO2, for hydrogen, for natural gas
- Technology
- membrane
- Number of stages
- single-stage
- Material
- stainless steel, PTFE
- Applications
- industrial, low-pressure, for analytical instruments, for pneumatic applications, for hygienic applications
- Other characteristics
- flange, high-flow, rugged, zero-bleed, explosion-proof, CE certified, chemical-resistant, relieving, non-relieving, corrosion-resistant, for corrosive fluids
- Pressure
7,000 mbar
(101.53 psi)Max.: 3,000 mbar
(43.51 psi)Min.: 5 mbar
(0.07 psi)- Flow
Max.: 8,000 l/min
(2,113.38 us gal/min)Min.: 1,000 l/min
(264.17 us gal/min)
Description
Description
Précision low pressure regulator with large diaphragm. completely made of stainless Steel
Media
compressed air or gases
Supply pressure
max. 7 bar, min. 1 bar
Air consumption
without constant bleed
Adjustment
by adjusting screw at R3100-04. -06 to -1A (A.B,C), - 12 and -16
by T-handle at R3100-06 to --1A (DfE), with locknut
Relieving function
non-relieving
Gauge port
G% on both sides of the body. one screw plug supplied
Mounting position
any
Température range
0 °C bis 80 °C / 32 °C to 176 °F, FKM or EPDM
0 °C bis 130 °C / 32 °C to 266 °F, high température version,
for appropriately conditioned compr. air down to -20 °C / - 4 °F, or low température down to -40 °C/-40°F
Material
Body: stainless Steel 316L, material no. 1.4404
O-rings: FKM
Diaphragm: NBR/Buna-N with PTFE coating
Inner valve: stainless Steel 316L / 1.4404 J
