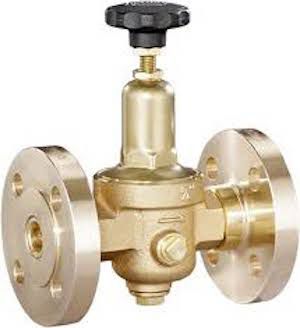

Potable water pressure regulator RWFfor compressed airfor inert gasesmembrane
Add to favorites
Compare this product
Characteristics
- Product
- for potable water, for compressed air, for inert gases
- Technology
- membrane
- Number of stages
- single-stage
- Material
- bronze
- Applications
- industrial, for pneumatic applications, for water systems
- Other characteristics
- rugged, flange
- Pressure
Min.: 0.2 bar
(2.9 psi)Max.: 20 bar
(290.08 psi)- Flow
Min.: 0.2 m³/h
(7.06 ft³/h)Max.: 9 m³/h
(317.83 ft³/h)- Orifice diameter
Min.: 8 mm
(0.315 in)Max.: 40 mm
(1.575 in)
Description
Regulator independent of inlet pressure, made of gunmetal, with strainer of stainless steel. Regulators up to 10 bar outlet pressure equipped with diaphragm, all others are piston-operated.
Drinking water: particulary all regulators RWF-..C
with pressure range 1.5 ...6 bar.
Media: preferably water or drinking water, but also compressed air,
neutral liquids and non-corrosive gases. It has to be considered that
these regulators are non-relieving.
Pressure difference: 1 bar, between inlet and outlet pressure
Gauge port: G1/4 on both sides of the body for outlet pressure,
ports are closed with screw plugs.
Mounting position: any, preferably vertical
ATEX: according to ATEX94/9EG, EN1127, EN13463 for zone 1, 2, 21 and 22
PED: according to EU directives DGRL/PED for liquids and gases of group 2
Flanges: according to DIN 1092. length according to DIN558-1
Temperature range: 0 °C to 80 °C / 32 °F to 176 °F
