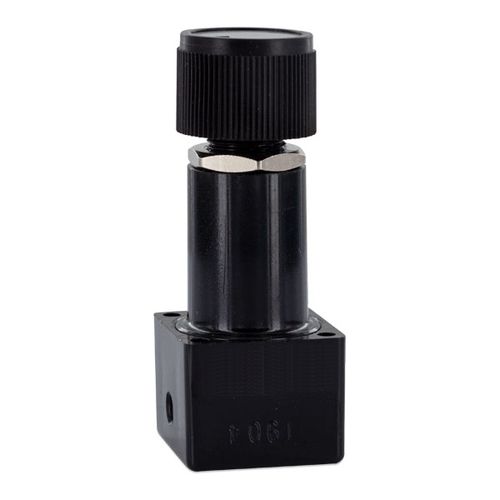

Compressed air pressure regulator R800 - R900for inert gasesfor oxygensingle-stage
Add to favorites
Compare this product
Characteristics
- Product
- for compressed air, for inert gases, for oxygen
- Number of stages
- single-stage
- Material
- technopolymer
- Applications
- industrial, for pneumatic applications
- Other characteristics
- miniature
- Pressure
Max.: 6.2 bar
(89.92 psi)10 bar
(145.04 psi)Min.: 0.03 bar
(0.44 psi)- Flow
Max.: 65 l/min
(17.17 us gal/min)Min.: 0 l/min
(0 us gal/min)
Description
Miniature precision regulator with high supply sensitivity, small dimension,
light weight. Hysteresis-free adjustment up to 20 turns.
Media: compressed air or non-corrosive gases
Supply pressure: max. 10 bar
Accuracy:
- at supply pressure variation of 1 bar
R800/R900/R901 < 7 mbar pressure deviation;
R810/R910/R911 < 20 mbar pressure deviation
- setting accuracy
R800/R900/R901 2.5 mbar;
R810/R910/R911 5.0 mbar
Air consumption:
R800/R900/R901 = max. 0.35 l/min at 7 bar supply pressure;
Relieving function: relieving, optionally non-relieving
Relief capacity: 15 l/min at 0.35 bar outlet above set-point
Gauge port: not available
Temperature range: 4 °C to 66 °C / 40 °F to 150 °F
Body: polysulfones
Elastomer: NBR/Buna-N
Innervalve: stainless steel and acetal
