TFT-LCD monitor AMG-06OPHA01T1multitouch screenresistive touch screenLED backlight
Add to favorites
Compare this product
Characteristics
- Technology
- PCAP touchscreen, TFT-LCD, resistive touch screen, multitouch screen, projected capacitive touchscreen, 5-wire resistive touch screen, capacitive touch screen, infrared touchscreen, with PCT touch screen, digital, LED backlight
- Applications
- for industrial machines, industrial, outdoor, for digital signage, for displays, for HMI interface, high-temperature, wide viewing angle, POS, for in-line monitoring, for medical applications, multifunction, for IoT applications, for CNC machines, for indoor use, for the automotive industry
- Display size
- 6.5"
- Resolution
- 640 x 480
- Mounting
- open-frame
- Other characteristics
- VGA, DVI port, customizable
- Width
130 mm
(5.1181 in)- Height
156 mm
(6.1417 in)- Thickness
37.4 mm
(1.472 in)- Operating temperature
Min.: -20 °C
(-4 °F)Max.: 70 °C
(158 °F)
Description
Product overview

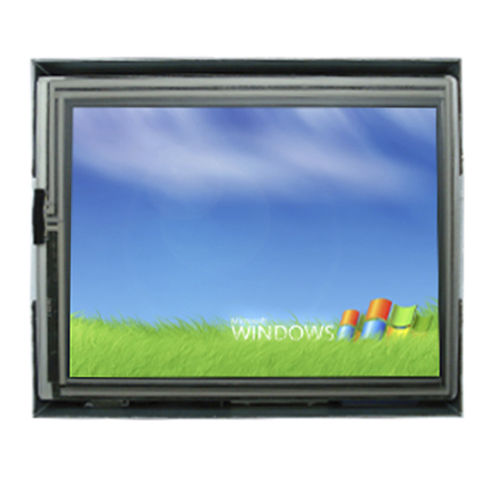

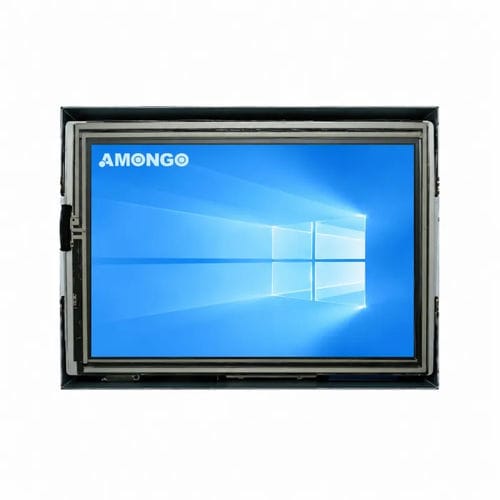

The open-frame LCD monitor AMG-06OPHA01T1 by Amongo is a 6.5" industrial display module designed for embedded and kiosk applications requiring continuous operation, multiple input interfaces and touch options.
Key features
Typical applications
Specifications
Model Name: AMG-06OPHA01T1
Screen Size: 6.5"
Active Display Area (mm): 132.48 (H) x 99.36 (V)
Pixel Pitch (mm): 0.207 (H) x 0.207 (V)
Display Mode: Normally white
Display Resolution (pixel): 640x480
Contrast Ratio: 600:1
Display Color: 16.2M (262K option)
Brightness (cd/㎡): 500
Backlight: CCFL/LED
Viewing Angles (CR=10): 140° (H); 120° (V)
Response Time (Typ. Tr+Tf): 25ms
Touch Screen: Resistive / IR / PCAP / SAW options
Signal Connector: VGA / DVI
Power Input: DC 12V
Operating Temperature: -20 to 70 °C
Storage Temperature: -20 to 80 °C
Relative Humidity: 5% to 90% RH
Technical characteristics
The open-frame LCD monitor AMG-06OPHA01T1 by Amongo is a 6.5" industrial display module designed for embedded and kiosk applications requiring continuous operation, multiple input interfaces and touch options.
Key features
- 6.5" screen with 640 x 480 resolution
- Backlight: CCFL or LED
- Touch options: resistive, infrared (IR), projected capacitive (PCAP), SAW
- Signal inputs: VGA, DVI
- Contrast ratio 600:1 and wide viewing angles
- Vibration resistance 1.5G
Typical applications
- ATMs and banking kiosks
- Self-service kiosks and parking/toll terminals
- Industrial control panels and embedded systems
Specifications
Model Name: AMG-06OPHA01T1
Screen Size: 6.5"
Active Display Area (mm): 132.48 (H) x 99.36 (V)
Pixel Pitch (mm): 0.207 (H) x 0.207 (V)
Display Mode: Normally white
Display Resolution (pixel): 640x480
Contrast Ratio: 600:1
Display Color: 16.2M (262K option)
Brightness (cd/㎡): 500
Backlight: CCFL/LED
Viewing Angles (CR=10): 140° (H); 120° (V)
Response Time (Typ. Tr+Tf): 25ms
Touch Screen: Resistive / IR / PCAP / SAW options
Signal Connector: VGA / DVI
Power Input: DC 12V
Operating Temperature: -20 to 70 °C
Storage Temperature: -20 to 80 °C
Relative Humidity: 5% to 90% RH
Technical characteristics
- Dimensions (V x H x T): 156 x 130 x 37.4 mm
- Power: DC 12V
- Mounting: open-frame module for integration in enclosures and kiosks
- Customization available: touch type, mechanical design and mounting options
- Typical sectors: industrial equipment, transportation, retail kiosks
