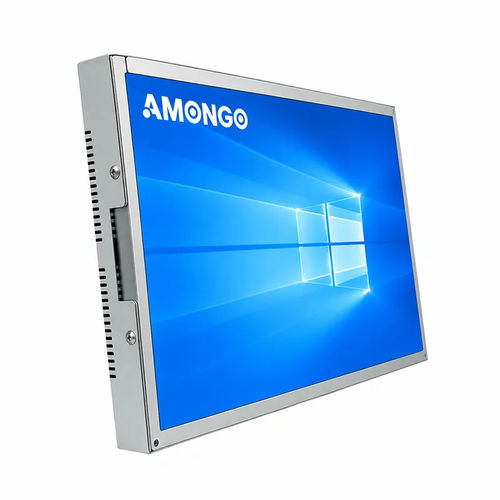

TFT-LCD monitor AMG-18OPHA01N1multitouch screenresistive touch screenLED backlight
Add to favorites
Compare this product
Characteristics
- Technology
- TFT-LCD, resistive touch screen, multitouch screen, PCAP touchscreen, 5-wire resistive touch screen, capacitive touch screen, infrared touchscreen, with PCT touch screen, digital, LED backlight
- Applications
- for CNC machines, industrial, for industrial machines, wide viewing angle, outdoor, for digital signage, for displays, high-temperature, for HMI interface, for medical applications, multifunction, POS, for IoT applications, for indoor use, for in-line monitoring, for the automotive industry
- Display size
- 18.5"
- Resolution
- 1366 x 768
- Mounting
- open-frame
- Other characteristics
- VGA, DVI port, wide viewing angle, anti-glare, highly reliable
- Width
257.2 mm
(10.126 in)- Height
433 mm
(17.0472 in)- Thickness
35 mm
(1.378 in)- Operating temperature
Min.: 0 °C
(32 °F)Max.: 50 °C
(122 °F)
Description
Product overview
This 18.5-inch open-frame LCD monitor, model AMG-18OPHA01N1, is designed for kiosks, ATMs and industrial display applications. It offers wide viewing angles, LED backlight, optional touchscreen interfaces and industrial-grade components for continuous 24/7 operation.
Key features
Typical applications
Specification
Screen size: 18.5"
Active display area: 409.8(H) x 230.4(V) mm
Pixel pitch: 0.3(H) x 0.3(V) mm
Display mode: Normally white
Resolution: 1366 x 768 pixels
Brightness: 250 cd/m²
Contrast ratio: 1000:1
Colors: 16.7M
Backlight: CCFL / LED
Viewing angles (CR=10): 170° (H) x 160° (V)
Response time (Typ.): 5 ms
Signal inputs: VGA, DVI
Power input: DC 12V
Operating temperature: 0 ~ 50 °C
Storage temperature: -20 ~ 60 °C
Relative humidity: 5% ~ 90% RH
Dimensions (V x H x T): 433 x 257.2 x 35 mm
Technical characteristics
This 18.5-inch open-frame LCD monitor, model AMG-18OPHA01N1, is designed for kiosks, ATMs and industrial display applications. It offers wide viewing angles, LED backlight, optional touchscreen interfaces and industrial-grade components for continuous 24/7 operation.
Key features
- Industrial-grade components for reliable 24/7 operation
- LED backlight with low power consumption
- Anti-glare option and robust mechanical design for harsh environments
- Signal inputs: VGA, DVI; internal single-channel LVDS interface
- Optional touchscreen types: PCAP, resistive, IR, SAW
Typical applications
- ATM and self-service kiosks
- Industrial control panels and HMI
- Testing and measurement instruments
- Transportation and ticketing terminals
Specification
Screen size: 18.5"
Active display area: 409.8(H) x 230.4(V) mm
Pixel pitch: 0.3(H) x 0.3(V) mm
Display mode: Normally white
Resolution: 1366 x 768 pixels
Brightness: 250 cd/m²
Contrast ratio: 1000:1
Colors: 16.7M
Backlight: CCFL / LED
Viewing angles (CR=10): 170° (H) x 160° (V)
Response time (Typ.): 5 ms
Signal inputs: VGA, DVI
Power input: DC 12V
Operating temperature: 0 ~ 50 °C
Storage temperature: -20 ~ 60 °C
Relative humidity: 5% ~ 90% RH
Dimensions (V x H x T): 433 x 257.2 x 35 mm
Technical characteristics
- Model: AMG-18OPHA01N1
- Type: 18.5" open-frame LCD
- Resolution: 1366 x 768
- Brightness: 250 cd/m²
- Contrast ratio: 1000:1
- Viewing angles: 170° / 160°
- Response time: 5 ms
- Signal interfaces: VGA, DVI (internal LVDS)
- Power: DC 12V
- Touchscreen: optional (PCAP, resistive, IR, SAW)
