TFT-LCD monitor AMG-24OPHA01N1multitouch screenresistive touch screenLED backlight
Add to favorites
Compare this product
Characteristics
- Technology
- TFT-LCD, resistive touch screen, multitouch screen, PCAP touchscreen, 5-wire resistive touch screen, capacitive touch screen, infrared touchscreen, with PCT touch screen, digital, LED backlight
- Applications
- outdoor, industrial, for industrial machines, for medical applications, for digital signage, for displays, for HMI interface, POS, for IoT applications, for CNC machines, wide viewing angle, for the automotive industry, for in-line monitoring, high-temperature
- Display size
- 24"
- Resolution
- 1920 x 1080, full HD
- Mounting
- open-frame, embedded
- Other characteristics
- HDMI, VGA, DVI port, wide viewing angle
- Width
559 mm
(22.0079 in)- Height
326.2 mm
(12.8425 in)- Thickness
46 mm
(1.811 in)- Operating temperature
Min.: 0 °C
(32 °F)Max.: 50 °C
(122 °F)
Description
Overview

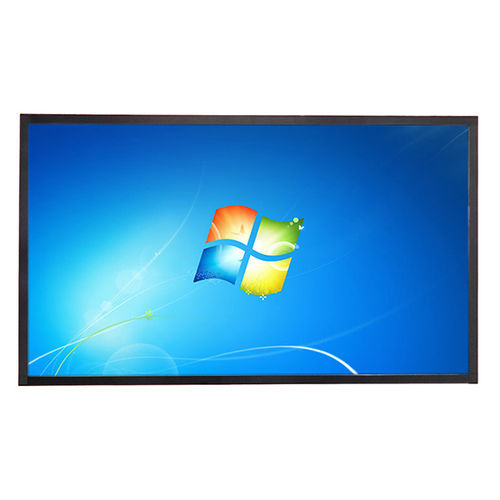

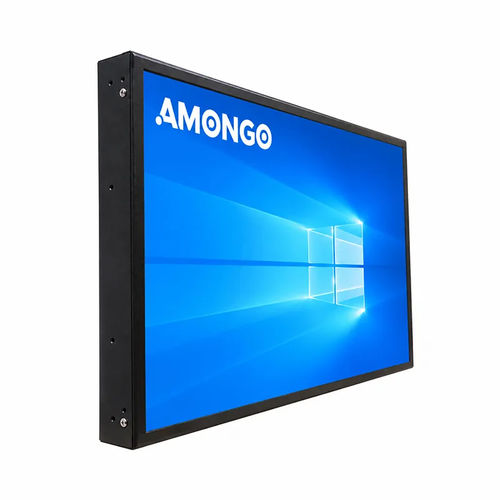

This 24-inch open-frame FHD LCD module, model AMG-24OPHA01N1, offers standard brightness (250 cd/m²), LED backlight and wide viewing angles. It is designed for embedded and kiosk applications with strong anti-interference and vibration resistance for reliable operation in constrained environments.
Key features
Typical applications
Specifications
This 24-inch open-frame FHD LCD module, model AMG-24OPHA01N1, offers standard brightness (250 cd/m²), LED backlight and wide viewing angles. It is designed for embedded and kiosk applications with strong anti-interference and vibration resistance for reliable operation in constrained environments.
Key features
- Full HD 1920×1080 resolution
- Brightness: 250 cd/m² (standard)
- Wide viewing angles: 178° horizontal / 178° vertical
- Strong EMI/anti-interference performance and vibration resistance (1.5G)
- Multiple video inputs: VGA / DVI / HDMI (AV/audio optional)
- Optional touchscreen interfaces: PCAP, resistive, IR, SAW
- Power input: DC 12V
Typical applications
- ATM and banking kiosks
- Self-service vending and unmanned cabinets
- Indoor advertising and information displays
- Industrial HMI and embedded systems
Specifications
- Model: AMG-24OPHA01N1
- Screen size: 24"
- Active display area: 531.36 × 298.89 mm
- Resolution: 1920 × 1080 (FHD)
- Pixel pitch: 0.27675 × 0.27675 mm
- Display mode: Normally Black
- Colors: 16.7M
- Contrast ratio: 3000:1
- Brightness: 250 cd/m²
- Backlight: LED
- Viewing angles: 178° (H) / 178° (V)
- Response time: 25 ms (Tr+Tf)
- Signal connectors: VGA / DVI / HDMI (AV/audio optional)
- Power input: DC 12V
- Operating temperature: 0 to 50 °C
- Storage temperature: -20 to 60 °C
- Relative humidity: 5% to 90% RH
- Vibration resistance: 1.5G
- Dimensions (W × H × D): 559 × 326.2 × 46 mm
