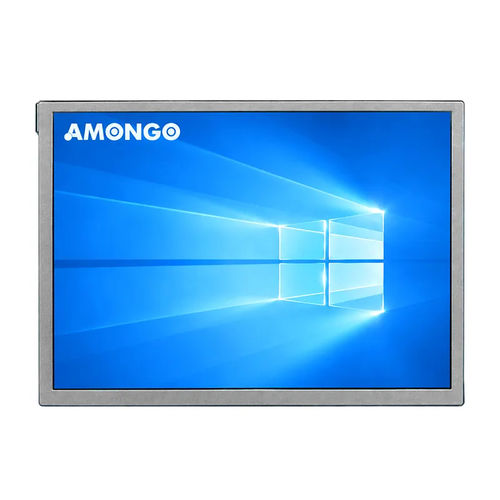

TFT-LCD monitor AMG-10OPHA03T2multitouch screenresistive touch screenLED backlight
Add to favorites
Compare this product
Characteristics
- Technology
- TFT-LCD, resistive touch screen, multitouch screen, projected capacitive touchscreen, PCAP touchscreen, 5-wire resistive touch screen, capacitive touch screen, infrared touchscreen, with PCT touch screen, digital, LED backlight
- Applications
- for industrial machines, industrial, for in-line monitoring, outdoor, for digital signage, high-temperature, for displays, for HMI interface, POS, for medical applications, for IoT applications, multifunction, for CNC machines, wide viewing angle, for indoor use, for the automotive industry
- Display size
- 10.4"
- Resolution
- 800 x 600
- Mounting
- open-frame
- Format
- pixel pitch
- Other characteristics
- USB, VGA-DVI port
- Operating temperature
Min.: -10 °C
(14 °F)Max.: 60 °C
(140 °F)
Description
Branded LCD panels with perfect image quality and wide viewing angles
Built with industrial-grade components for a reliable 24/7/365 operation
LED backlight for low power consumption to save more energy
High-end mechanical design to meet tough environmental conditions and requirements,
Customization service is available
Specifications
Active Display Area (mm)
228.4 (H) x 175.5 (V)
Pixel Pitch (mm)
0.264 (H) x 0.264 (V)
Display Mode
Normally white
Contrast Ratio
500:1
Display Color
-
16.7M colors
Brightness (CD/㎡)
300
Viewing Angles (CR =10)
150 (H); 110 (V)
Response Time(Typ.Tr+Tf)
30ms
Power Consumption
DC 12V
Dimension(VxHxT)
230.5x181.5x29.9
Operating Temperature
-1060℃
Storage Temperature
-2070℃
Relative Humidity
5(%RH)90(%RH)
Built with industrial-grade components for a reliable 24/7/365 operation
LED backlight for low power consumption to save more energy
High-end mechanical design to meet tough environmental conditions and requirements,
Customization service is available
Specifications
Active Display Area (mm)
228.4 (H) x 175.5 (V)
Pixel Pitch (mm)
0.264 (H) x 0.264 (V)
Display Mode
Normally white
Contrast Ratio
500:1
Display Color
-
16.7M colors
Brightness (CD/㎡)
300
Viewing Angles (CR =10)
150 (H); 110 (V)
Response Time(Typ.Tr+Tf)
30ms
Power Consumption
DC 12V
Dimension(VxHxT)
230.5x181.5x29.9
Operating Temperature
-1060℃
Storage Temperature
-2070℃
Relative Humidity
5(%RH)90(%RH)
