TFT-LCD monitor AMG-17OPHA01T1multi-touch screenresistive touch screenLED
Add to favorites
Compare this product
Characteristics
- Technology
- TFT-LCD, resistive touch screen, multi-touch screen, PCAP touchscreen, 5-wire resistive touch screen, capacitive touch screen, infrared touchscreen, with PCT touch screen, digital, LED, LED backlight
- Applications
- for indoor use, industrial, for industrial machines, outdoor, multifunction, high-temperature, for in-line monitoring, for digital signage, for displays, for HMI interface, POS, for medical applications, for IoT applications, for CNC machines, for the automotive industry, wide viewing angle
- Display size
- 17"
- Resolution
- 1280 x 1024
- Mounting
- VESA mounting, open-frame, for integration, embedded
- Format
- pixel pitch
- Other characteristics
- VGA, DVI port
- Width
368.13 mm
(14.4933 in)- Height
306.13 mm
(12.0524 in)- Thickness
54.26 mm
(2.136 in)- Operating temperature
Min.: 0 °C
(32 °F)Max.: 50 °C
(122 °F)
Description
Product overview

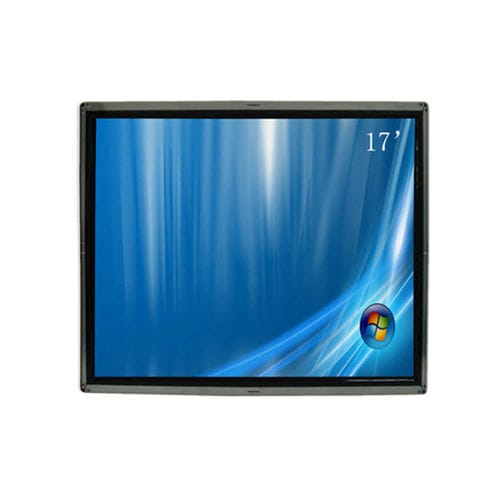

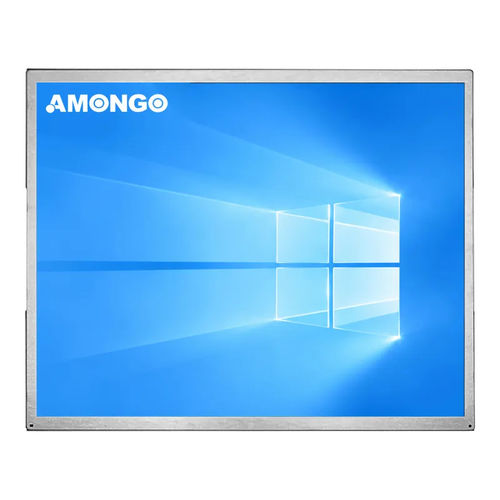

The AMG-17OPHA01T1 is a 17" open-frame LCD monitor with 1280×1024 resolution and an optional resistive touchscreen. It supports CCFL or LED backlight, DC 12V power input and is designed for integration into kiosks, industrial enclosures and embedded systems.
Key features
Typical applications
Specifications
Model: AMG-17OPHA01T1
Screen size: 17"
Resolution: 1280 x 1024
Active display area: 337.92 x 270.33 mm
Pixel pitch: 0.264 x 0.264 mm
Display mode: Normally white
Contrast ratio: 1000:1
Colors: 16.7M
Brightness: 250 cd/m²
Backlight: CCFL / LED
Viewing angles: 170° (H) / 160° (V)
Response time: 8 ms
Touchscreen: Resistive (optional)
Signal connector: VGA, DVI
Power input: DC 12V
Operating temperature: 0 to 50 °C
Storage temperature: -10 to 70 °C
Relative humidity: 5% to 90% RH
Technical details
The AMG-17OPHA01T1 is a 17" open-frame LCD monitor with 1280×1024 resolution and an optional resistive touchscreen. It supports CCFL or LED backlight, DC 12V power input and is designed for integration into kiosks, industrial enclosures and embedded systems.
Key features
- Industrial-grade components for reliable 24/7 operation
- Optional resistive touchscreen; other touch options available (PCAP, IR, SAW)
- CCFL or LED backlight; brightness 250 cd/m²
- Wide viewing angles: 170° (H) / 160° (V)
- Signal inputs: VGA and DVI
- Rear or VESA mounting for kiosk and panel integration
- Customization and integration services available
Typical applications
- Industrial automation & HMI
- Self-service kiosks, ATMs and terminals
- Gaming and amusement machines
- Security and surveillance systems
- Transportation and control panels
Specifications
Model: AMG-17OPHA01T1
Screen size: 17"
Resolution: 1280 x 1024
Active display area: 337.92 x 270.33 mm
Pixel pitch: 0.264 x 0.264 mm
Display mode: Normally white
Contrast ratio: 1000:1
Colors: 16.7M
Brightness: 250 cd/m²
Backlight: CCFL / LED
Viewing angles: 170° (H) / 160° (V)
Response time: 8 ms
Touchscreen: Resistive (optional)
Signal connector: VGA, DVI
Power input: DC 12V
Operating temperature: 0 to 50 °C
Storage temperature: -10 to 70 °C
Relative humidity: 5% to 90% RH
Technical details
- Dimensions (W x H x T): 368.13 x 306.13 x 54.26 mm
- Suitable for embedded and open-frame installations
- Optional touch technologies and mechanical customization for kiosk integration
