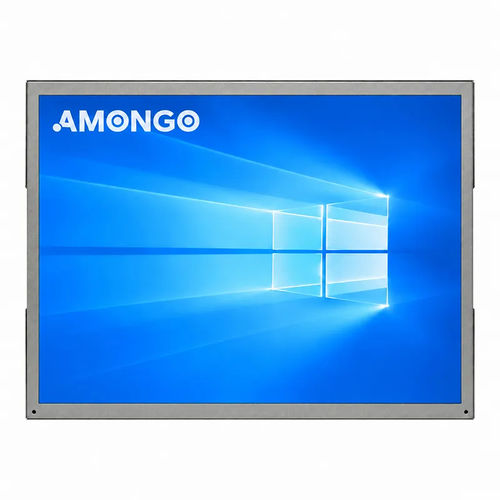

TFT-LCD monitor AMG-19OPHA02N2
multitouch screenresistive touch screenLED backlight

TFT-LCD monitor - AMG-19OPHA02N2 - AMONGO Display Technology(ShenZhen)Co.,LTD - multitouch screen / resistive touch screen / LED backlight
TFT-LCD monitor - AMG-19OPHA02N2 - AMONGO Display Technology(ShenZhen)Co.,LTD - multitouch screen / resistive touch screen / LED backlight
TFT-LCD monitor - AMG-19OPHA02N2 - AMONGO Display Technology(ShenZhen)Co.,LTD - multitouch screen / resistive touch screen / LED backlight - image - 2
TFT-LCD monitor - AMG-19OPHA02N2 - AMONGO Display Technology(ShenZhen)Co.,LTD - multitouch screen / resistive touch screen / LED backlight - image - 3
TFT-LCD monitor - AMG-19OPHA02N2 - AMONGO Display Technology(ShenZhen)Co.,LTD - multitouch screen / resistive touch screen / LED backlight - image - 4
TFT-LCD monitor - AMG-19OPHA02N2 - AMONGO Display Technology(ShenZhen)Co.,LTD - multitouch screen / resistive touch screen / LED backlight - image - 5
TFT-LCD monitor - AMG-19OPHA02N2 - AMONGO Display Technology(ShenZhen)Co.,LTD - multitouch screen / resistive touch screen / LED backlight - image - 6
TFT-LCD monitor - AMG-19OPHA02N2 - AMONGO Display Technology(ShenZhen)Co.,LTD - multitouch screen / resistive touch screen / LED backlight - image - 7
Add to favorites
Compare this product
Go to the AMONGO Display Technology(ShenZhen)Co.,LTD website for more information

Characteristics

Technology
multitouch screen, TFT-LCD, resistive touch screen, projected capacitive touchscreen, PCAP touchscreen, 5-wire resistive touch screen, capacitive touch screen, infrared touchscreen, with PCT touch screen, digital, LED backlight
Applications
industrial, for industrial machines, outdoor, for digital signage, for displays, for HMI interface, POS, for IoT applications, for CNC machines, for indoor use, wide viewing angle, for in-line monitoring, high-temperature, for medical applications
Display size
19"
Resolution
1280 x 1024
Mounting
open frame
Format
pixel pitch
Other characteristics
VGA, DVI port, customizable
Width

376.32 mm
(14.8157 in)

Height

301.06 mm
(11.8528 in)

Operating temperature

Min.: 0 °C
(32 °F)

Max.: 50 °C
(122 °F)

Description

Product Overview
This 19-inch compact LCD module features multiple interfaces and excellent anti-interference capability.

Key features
  • LED backlight design with low power consumption
  • Multiple touch screen options and premium mechanical structure
  • Customization services available
  • Vibration resistance: 1.5G

Typical applications
  • ATM
  • Smart safe
  • Parking toll terminal

Caractéristiques / Spécifications techniques
  • Screen Size: 19"
  • Active Display Area (mm): 376.32 (H) x 301.06 (V)
  • Pixel Pitch (mm): 0.294 (H) x 0.294 (V)
  • Display Mode: Normally white
  • Display Resolution (pixel): 1280x1024
  • Contrast Ratio: 1000:1
  • Display Color: 16.7M
  • Brightness: 250 nits
  • Backlight: LED
  • Viewing Angles (CR=10): 170° (H); 160° (V)
  • Response Time (Typ. Tr+Tf): 5 ms
  • Touch Screen: Resistive
  • Signal Connector: VGA / DVI
  • Power Input: DC 12V
  • Operating Temperature: 050℃
  • Storage Temperature: -2060℃
  • Relative Humidity: 5(%RH)90(%RH)
