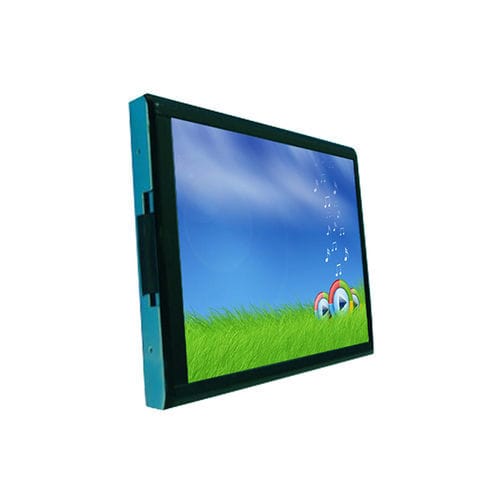

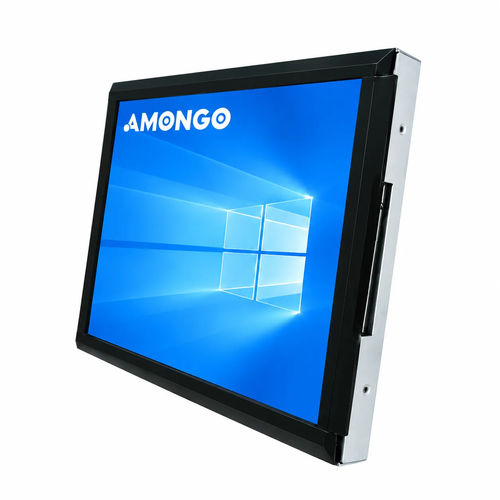

TFT-LCD monitor AMG-12OPHA01T1
multitouch screenresistive touch screenLED backlight

TFT-LCD monitor - AMG-12OPHA01T1 - AMONGO Display Technology(ShenZhen)Co.,LTD - multitouch screen / resistive touch screen / LED backlight
TFT-LCD monitor - AMG-12OPHA01T1 - AMONGO Display Technology(ShenZhen)Co.,LTD - multitouch screen / resistive touch screen / LED backlight
TFT-LCD monitor - AMG-12OPHA01T1 - AMONGO Display Technology(ShenZhen)Co.,LTD - multitouch screen / resistive touch screen / LED backlight - image - 2
TFT-LCD monitor - AMG-12OPHA01T1 - AMONGO Display Technology(ShenZhen)Co.,LTD - multitouch screen / resistive touch screen / LED backlight - image - 3
TFT-LCD monitor - AMG-12OPHA01T1 - AMONGO Display Technology(ShenZhen)Co.,LTD - multitouch screen / resistive touch screen / LED backlight - image - 4
TFT-LCD monitor - AMG-12OPHA01T1 - AMONGO Display Technology(ShenZhen)Co.,LTD - multitouch screen / resistive touch screen / LED backlight - image - 5
TFT-LCD monitor - AMG-12OPHA01T1 - AMONGO Display Technology(ShenZhen)Co.,LTD - multitouch screen / resistive touch screen / LED backlight - image - 6
TFT-LCD monitor - AMG-12OPHA01T1 - AMONGO Display Technology(ShenZhen)Co.,LTD - multitouch screen / resistive touch screen / LED backlight - image - 7
Add to favorites
Compare this product
Go to the AMONGO Display Technology(ShenZhen)Co.,LTD website for more information

Characteristics

Technology
multitouch screen, TFT-LCD, resistive touch screen, projected capacitive touchscreen, PCAP touchscreen, 5-wire resistive touch screen, capacitive touch screen, infrared touchscreen, with PCT touch screen, digital, LED backlight
Applications
for indoor use, industrial, for industrial machines, multifunction, outdoor, for digital signage, for displays, for HMI interface, for tests, wide viewing angle, POS, for in-line monitoring, for IoT applications, for CNC machines, for the automotive industry, high-temperature, for medical applications
Display size
12.1"
Resolution
800 x 600
Mounting
open frame
Other characteristics
VGA, DVI port, VGA-DVI port, wide temperature range
Width

246 mm
(9.685 in)

Height

184.5 mm
(7.2638 in)

Operating temperature

Min.: -30 °C
(-22 °F)

Max.: 80 °C
(176 °F)

Description

Product overview
This 12.1-inch Open‑Frame Industrial Monitor, Wide Temperature Operation.

Key features
  • 800x600 pixels
  • Brightness: 400 nits
  • Capacitive Touch

Typical applications
  • Industrial HMI
  • Testing & Instrument Equipment
  • Self‑service Kiosks

Caractéristiques / spécifications techniques
  • Screen Size: 12.1"
  • Active Display Area (mm): 246.0 (H) x 184.5 (V)
  • Pixel Pitch (mm): 0.3075 (H) x 0.3075 (V)
  • Display Mode: Normally white
  • Display Resolution (pixel): 800x600
  • Contrast Ratio: 600:1
  • Display Color: 16.2M
  • Brightness: 400nits
  • Backlight: CCFL/LED
  • Viewing Angles (CR=10): 140 (H); 110 (V)
  • Response Time (Typ.Tr+Tf): 35ms
  • Touch Screen: Capacitive
  • Signal Connector: VGA/DVI/DC2.0
  • Power Input: DC 12V
  • Operating Temperature: -3080℃
  • Storage Temperature: -3080℃
  • Relative Humidity: 5(%RH)90(%RH)
