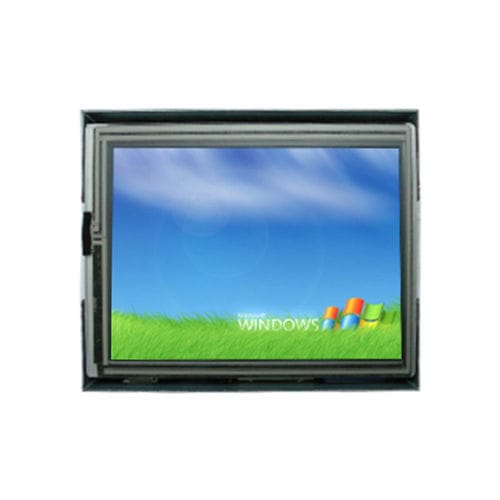

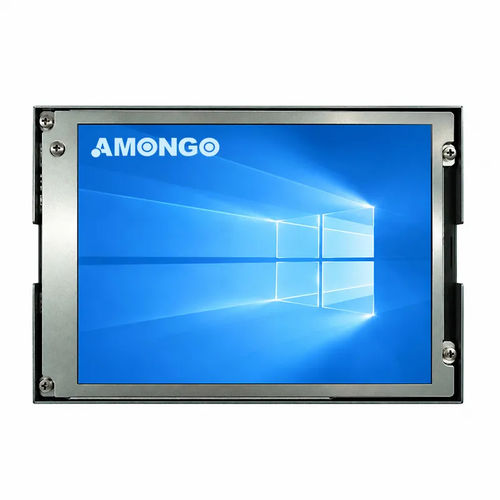

TFT-LCD monitor AMG-08OPHA02N1multitouch screenresistive touch screenLED backlight
Add to favorites
Compare this product
Characteristics
- Technology
- multitouch screen, TFT-LCD, resistive touch screen, projected capacitive touchscreen, PCAP touchscreen, 5-wire resistive touch screen, capacitive touch screen, infrared touchscreen, with PCT touch screen, digital, LED backlight
- Applications
- industrial, for industrial machines, outdoor, for digital signage, for displays, for HMI interface, POS, for in-line monitoring, for IoT applications, for CNC machines, high-temperature, for medical applications, wide viewing angle, for the automotive industry, multifunction
- Display size
- 8.4"
- Resolution
- 800 x 600
- Mounting
- open-frame
- Format
- pixel pitch
- Other characteristics
- VGA-DVI port
- Operating temperature
Min.: 0 °C
(32 °F)Max.: 50 °C
(122 °F)
Description
Branded LCD panels with perfect image quality and wide viewing angles
Built with industrial-grade components for a reliable 24/7/365 operation
LED backlight for low power consumption to save more energy
High-end mechanical design to meet tough environmental conditions and requirements,
Customization service is available
Specifications
Active Display Area (mm)
170.4(H) x127.8(V)
Pixel Pitch (mm)
0.213(H) x 0.213 (V)
Display Mode
-
Normally white
Contrast Ratio
500:1
Display Color
262K colors
Brightness (CD/㎡)
200
Viewing Angles (CR =10)
-
130(H); 110 (V)
Response Time(Typ.Tr+Tf)
-
35ms
Power Consumption
DC 12V
Dimension(VxHxT)
-
210x149x25
Operating Temperature
-
050℃
Storage Temperature
-
-2060℃
Relative Humidity
-
5(%RH)90(%RH)
Built with industrial-grade components for a reliable 24/7/365 operation
LED backlight for low power consumption to save more energy
High-end mechanical design to meet tough environmental conditions and requirements,
Customization service is available
Specifications
Active Display Area (mm)
170.4(H) x127.8(V)
Pixel Pitch (mm)
0.213(H) x 0.213 (V)
Display Mode
-
Normally white
Contrast Ratio
500:1
Display Color
262K colors
Brightness (CD/㎡)
200
Viewing Angles (CR =10)
-
130(H); 110 (V)
Response Time(Typ.Tr+Tf)
-
35ms
Power Consumption
DC 12V
Dimension(VxHxT)
-
210x149x25
Operating Temperature
-
050℃
Storage Temperature
-
-2060℃
Relative Humidity
-
5(%RH)90(%RH)
