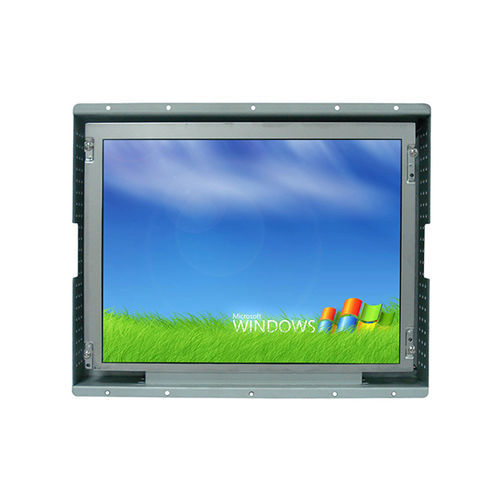

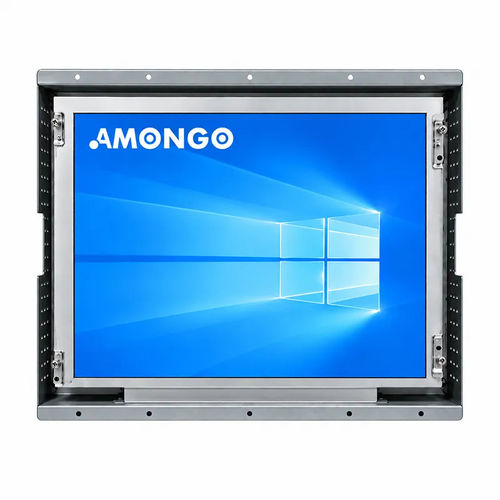

TFT-LCD monitor AMG-12OPMD01N1
multitouch screenresistive touch screenLED backlight

TFT-LCD monitor - AMG-12OPMD01N1 - AMONGO Display Technology(ShenZhen)Co.,LTD - multitouch screen / resistive touch screen / LED backlight
TFT-LCD monitor - AMG-12OPMD01N1 - AMONGO Display Technology(ShenZhen)Co.,LTD - multitouch screen / resistive touch screen / LED backlight
TFT-LCD monitor - AMG-12OPMD01N1 - AMONGO Display Technology(ShenZhen)Co.,LTD - multitouch screen / resistive touch screen / LED backlight - image - 2
TFT-LCD monitor - AMG-12OPMD01N1 - AMONGO Display Technology(ShenZhen)Co.,LTD - multitouch screen / resistive touch screen / LED backlight - image - 3
TFT-LCD monitor - AMG-12OPMD01N1 - AMONGO Display Technology(ShenZhen)Co.,LTD - multitouch screen / resistive touch screen / LED backlight - image - 4
TFT-LCD monitor - AMG-12OPMD01N1 - AMONGO Display Technology(ShenZhen)Co.,LTD - multitouch screen / resistive touch screen / LED backlight - image - 5
TFT-LCD monitor - AMG-12OPMD01N1 - AMONGO Display Technology(ShenZhen)Co.,LTD - multitouch screen / resistive touch screen / LED backlight - image - 6
TFT-LCD monitor - AMG-12OPMD01N1 - AMONGO Display Technology(ShenZhen)Co.,LTD - multitouch screen / resistive touch screen / LED backlight - image - 7
Add to favorites
Compare this product
Go to the AMONGO Display Technology(ShenZhen)Co.,LTD website for more information

Characteristics

Technology
TFT-LCD, resistive touch screen, multitouch screen, PCAP touchscreen, 5-wire resistive touch screen, capacitive touch screen, infrared touchscreen, with PCT touch screen, digital, LED backlight
Applications
for industrial machines, industrial, outdoor, for digital signage, for displays, for HMI interface, CCFL backlight, POS, for IoT applications, for medical applications, for CNC machines, wide viewing angle, high-temperature, for the automotive industry, for in-line monitoring, multifunction
Display size
12.1"
Resolution
800 x 600
Mounting
VESA mounting, open-frame
Other characteristics
VGA, DVI port, wide viewing angle
Width

248 mm
(9.7638 in)

Height

300 mm
(11.811 in)

Thickness

34 mm
(1.339 in)

Operating temperature

Min.: -10 °C
(14 °F)

Max.: 65 °C
(149 °F)

Description

Product overview
The AMG-12OPMD01N1 is a 12.1" open-frame TFT LCD monitor designed for industrial integration. Supplied by Amongo, it combines industrial-grade components, selectable CCFL/LED backlight and optional touchscreen interfaces to suit HMI, kiosk and embedded applications.

Key features
  • 12.1" open-frame TFT display — active area 246.0 × 184.5 mm
  • Resolution 800×600, contrast ratio 500:1, color depth up to 16.2M (options for 262k)
  • CCFL or LED backlight; typical brightness 400 cd/㎡
  • Wide viewing angles 140° (H) / 110° (V) and response time 35 ms
  • Optional resistive touchscreen (USB controller); other touch options: PCAP, IR, SAW
  • Signal inputs: VGA and DVI; power input DC 12V
  • Open-frame with rear or VESA mount for straightforward integration into panels and kiosks


Typical applications
  • Industrial HMI and machine control panels
  • Self-service kiosks, ATMs and VTMs
  • Embedded terminals, CNC machines and special-purpose equipment


Technical specifications
  • Model Name: AMG-12OPMD01N1
  • Screen Size: 12.1"
  • Active Display Area (mm): 246.0 (H) x 184.5 (V)
  • Pixel Pitch (mm): 0.3075 (H) x 0.3075 (V)
  • Display Mode: Normally white
  • Display Resolution: 800 × 600 pixels
  • Contrast Ratio: 500:1
  • Display Color: 16.2M (option: 262k / 144 colours)
  • Brightness: 400 cd/㎡
  • Backlight: CCFL / LED
  • Viewing Angles (CR=10): 140° (H) / 110° (V)
  • Response Time (Typ. Tr+Tf): 35 ms
  • Touch Screen: Resistive (optional); Touch Controller: USB
  • Signal Connector: VGA / DVI
  • Power Input: DC 12V
  • Dimensions (V x H x T): 300 x 248 x 34 mm
  • Operating Temperature: -10 to 65 °C
  • Storage Temperature: -30 to 70 °C
  • Relative Humidity: 5% RH to 90% RH
