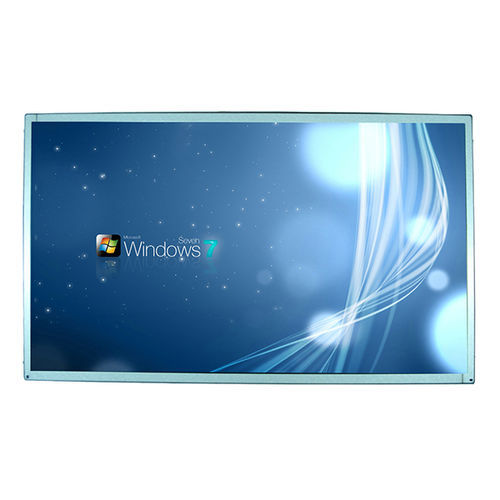

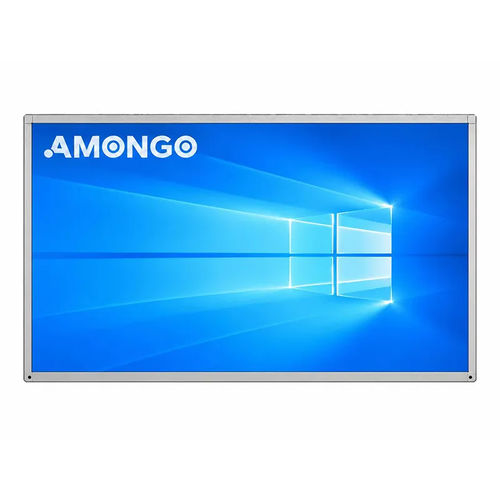

TFT-LCD monitor AMG-21OPHA01N1multitouch screenresistive touch screenLED backlight
Add to favorites
Compare this product
Characteristics
- Technology
- TFT-LCD, resistive touch screen, multitouch screen, PCAP touchscreen, 5-wire resistive touch screen, capacitive touch screen, infrared touchscreen, with PCT touch screen, digital, LED backlight
- Applications
- for industrial machines, industrial, outdoor, for digital signage, wide viewing angle, for displays, for HMI interface, for in-line monitoring, POS, for IoT applications, for medical applications, for CNC machines, high-temperature, for indoor use, multifunction, for the automotive industry
- Display size
- 21.5"
- Resolution
- 1920 x 1080, full HD
- Mounting
- open frame
- Format
- pixel pitch
- Other characteristics
- VGA, DVI port, wide viewing angle, highly reliable, customizable
- Width
498 mm
(19.6063 in)- Height
294.6 mm
(11.5984 in)- Thickness
28 mm
(1.102 in)- Operating temperature
Min.: 0 °C
(32 °F)Max.: 50 °C
(122 °F)
Description
Overview
The AMG-21OPHA01N1 is a 21.5-inch open-frame LCD monitor designed for industrial and kiosk applications, offering Full HD 1920×1080 resolution and LED backlighting. Touchscreen options are available for interactive installations.
Key features
Applications
Specifications
Model Name: AMG-21OPHA01N1
Screen Size: 21.5-inch
Active Display Area (mm): 476.64(H) x 268.11(V)
Pixel Pitch (mm): 0.294(H) x 0.294(V)
Display Mode: Normally White
Display Resolution (pixel): 1920×1080
Contrast Ratio: 1000:1
Display Color: 16.7M
Brightness (cd/㎡): 250
Backlight: LED
Viewing Angles (CR=10): 178°(H);178°(V)
Response Time (Typ. Tr+Tf): 5 ms
Signal Connector: VGA, DVI
Power Consumption: DC 12V
Dimensions (VxHxT): 498 x 294.6 x 28 mm
Operating Temperature: 0–50 °C
Storage Temperature: -20–60 °C
Relative Humidity: 5%–90% RH
Touch Screen: Optional
Technical characteristics
The AMG-21OPHA01N1 is a 21.5-inch open-frame LCD monitor designed for industrial and kiosk applications, offering Full HD 1920×1080 resolution and LED backlighting. Touchscreen options are available for interactive installations.
Key features
- 21.5-inch Full HD (1920×1080) display, 250 cd/m² brightness
- LED backlight, 1000:1 contrast ratio, 16.7M colors
- Wide viewing angles: 178° horizontal / 178° vertical
- Fast response time: 5 ms; signal inputs: VGA, DVI
- Designed for 24/7 industrial operation; optional PCAP, resistive, IR, SAW touchscreens
- Vibration resistance and customizable mechanical options for harsh environments
Applications
- ATM and self-service kiosks
- Industrial HMI and automation panels
- Indoor digital signage and vending machines
- Railway and transportation information displays
Specifications
Model Name: AMG-21OPHA01N1
Screen Size: 21.5-inch
Active Display Area (mm): 476.64(H) x 268.11(V)
Pixel Pitch (mm): 0.294(H) x 0.294(V)
Display Mode: Normally White
Display Resolution (pixel): 1920×1080
Contrast Ratio: 1000:1
Display Color: 16.7M
Brightness (cd/㎡): 250
Backlight: LED
Viewing Angles (CR=10): 178°(H);178°(V)
Response Time (Typ. Tr+Tf): 5 ms
Signal Connector: VGA, DVI
Power Consumption: DC 12V
Dimensions (VxHxT): 498 x 294.6 x 28 mm
Operating Temperature: 0–50 °C
Storage Temperature: -20–60 °C
Relative Humidity: 5%–90% RH
Touch Screen: Optional
Technical characteristics
- Model: AMG-21OPHA01N1
- Resolution: 1920×1080 (Full HD)
- Brightness: 250 cd/㎡; Contrast: 1000:1
- Connections: VGA, DVI; Power: DC 12V
- Dimensions: 498 x 294.6 x 28 mm
- Operating conditions: 0–50 °C, storage -20–60 °C, 5%–90% RH
- Optional touch technologies: PCAP, resistive, IR, SAW
