TFT-LCD monitor AMG-15OPHA07N1multitouch screenresistive touch screenLED backlight
Add to favorites
Compare this product
Characteristics
- Technology
- capacitive touch screen, TFT-LCD, resistive touch screen, multitouch screen, projected capacitive touchscreen, PCAP touchscreen, 5-wire resistive touch screen, infrared touchscreen, with PCT touch screen, digital, LED backlight
- Applications
- industrial, for industrial machines, outdoor, for digital signage, for displays, for HMI interface, for medical applications, high-temperature, POS, for IoT applications, for in-line monitoring, for CNC machines, wide viewing angle, for indoor use, multifunction
- Display size
- 15"
- Resolution
- 1024 x 768
- Mounting
- open frame
- Other characteristics
- VGA-DVI port, wide temperature range
- Width
304.128 mm
(11.9735 in)- Height
228.096 mm
(8.9802 in)- Operating temperature
Max.: 50 °C
(122 °F)Min.: 0 °C
(32 °F)
Description
Product Summary

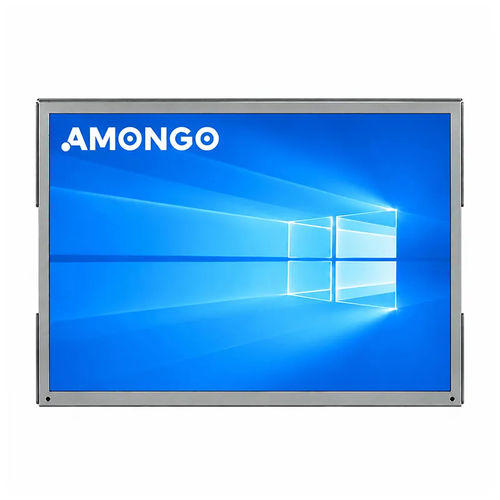

This 15-inch open frame monitor available in versions with or without resistive touchscreen.
Key features
Typical applications
Specification
Screen Size: 15"
Active Display Area (mm): 304.128 (H) x 228.096 (V)
Pixel Pitch (mm): 0.297 (H) x 0.297 (V)
Display Mode: Normally white
Display Resolution (pixel): 1024x768
Contrast Ratio: 400:1
Display Color: 16.2M
Brightness: 250nits
Backlight: CCFL/LED
Viewing Angles (CR=10): 120 (H); 100 (V)
Response Time (Typ. Tr+Tf): 16ms
Touch Screen: Resistive
Signal Connector: VGA/DVI
Power Input: DC 12V_4A
Operating Temperature: 050℃
Storage Temperature: -2060℃
Relative Humidity: 5(%RH)90(%RH)
Caractéristiques / Spécifications techniques
This 15-inch open frame monitor available in versions with or without resistive touchscreen.
Key features
- Optional resistive touch
- VGA/DVI
- Wide temp range
Typical applications
- ATM
- Kiosk
Specification
Screen Size: 15"
Active Display Area (mm): 304.128 (H) x 228.096 (V)
Pixel Pitch (mm): 0.297 (H) x 0.297 (V)
Display Mode: Normally white
Display Resolution (pixel): 1024x768
Contrast Ratio: 400:1
Display Color: 16.2M
Brightness: 250nits
Backlight: CCFL/LED
Viewing Angles (CR=10): 120 (H); 100 (V)
Response Time (Typ. Tr+Tf): 16ms
Touch Screen: Resistive
Signal Connector: VGA/DVI
Power Input: DC 12V_4A
Operating Temperature: 050℃
Storage Temperature: -2060℃
Relative Humidity: 5(%RH)90(%RH)
Caractéristiques / Spécifications techniques
- Screen Size: 15"
- Active Display Area: 304.128 (H) x 228.096 (V) mm
- Pixel Pitch: 0.297 (H) x 0.297 (V) mm
- Display Mode: Normally white
- Resolution: 1024 x 768
- Contrast Ratio: 400:1
- Color: 16.2M
- Brightness: 250 nits
- Backlight: CCFL/LED
- Viewing Angles: 120° (H) / 100° (V) (CR=10)
- Response Time: 16 ms (Typ. Tr+Tf)
- Touch Screen: Resistive (optional)
- Signal Connector: VGA / DVI
- Power Input: DC 12V 4A
- Operating Temperature: 0 to 50 °C
- Storage Temperature: -20 to 60 °C
- Relative Humidity: 5% to 90% RH
