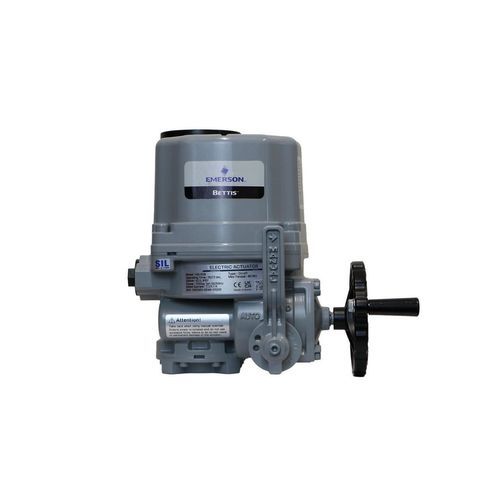

Electric valve actuator HQ-Seriesquarter-turnmodulatingthermal
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Movement
- quarter-turn
- Other characteristics
- modulating, thermal, with backup battery, anti-corrosion, analog, declutching, small, compact
- Torque
Min.: 0 Nm
(0 ft.lb)Max.: 200,000,000 Nm
(147,512,429.86 ft.lb)- Rotation angle
90 °
Description
Product Overview
Compact, easy-to-use electric actuator engineered for quarter-turn valves (ball, butterfly, plug and others), providing reliable and safe operation, lightweight construction and enhanced corrosion protection for extended service life.
Key Features
Caractéristiques / spécifications techniques
Compact, easy-to-use electric actuator engineered for quarter-turn valves (ball, butterfly, plug and others), providing reliable and safe operation, lightweight construction and enhanced corrosion protection for extended service life.
Key Features
- Declutchable manual override
- Terminal block color coded for easy identification
- Self-locking worn-gear design
- Built-in thermal protection (thermostat), opens at 150 ±5 °C and closes at 97 ±15 °C
- Optional Adders Include:
- Rechargeable battery pack for emergency fail-safe operation
- Current position transmitter (4 to 20 mA DC)
- Proportional control unit (modulating), I/O: 0 to 10 V DC or 4 to 20 mA DC; Duty cycle: S4 40–70%, 800–1200 starts/hour (room temperature, average load 50% of maximum torque)
Caractéristiques / spécifications techniques
- Power source: Electric
- Product type: Quarter-turn electric actuator
- Actuator: Electric
- Certifications: CSA (US and Canada)
- Control type: On/Off, Modulating
